SKU: 35x45x10_UIP_NAK
NAK 35x45x10mm UIP Polyurethane Rod Seal - Allow 7-10 Days
NAK 35x45x10mm UIP Polyurethane Rod Seal - Allow 7-10 Days
Regular price
€4,04
ex VAT
Regular price
Sale price
€4,04
ex VAT
In stock
Price Break
10+
€3,07
19+
€2,90
29+
€2,87
39+
€2,83
49+
€2,80
74+
€2,76
99+
€2,59
199+
€2,55
249+
€2,52
499+
€2,49
999+
€2,42
Quantity
Couldn't load pickup availability
Share this product
Description
Description
NAK UIP Rod Seals: The UIP rod seal is a high-performance hydraulic sealing element developed by NAK for demanding rod-end applications. Featuring an asymmetric lip design, it delivers reliable sealing performance while offering enhanced protection against contamination and premature wear.
Benefits: Easy installation, extended operating life, low-friction operation even under high-speed conditions
- Brand / Quality:
- NAK - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 45mm
- Length:
- 10mm
- Material:
- Polyurethane
- Style:
- UIP
- Colour:
- Blue

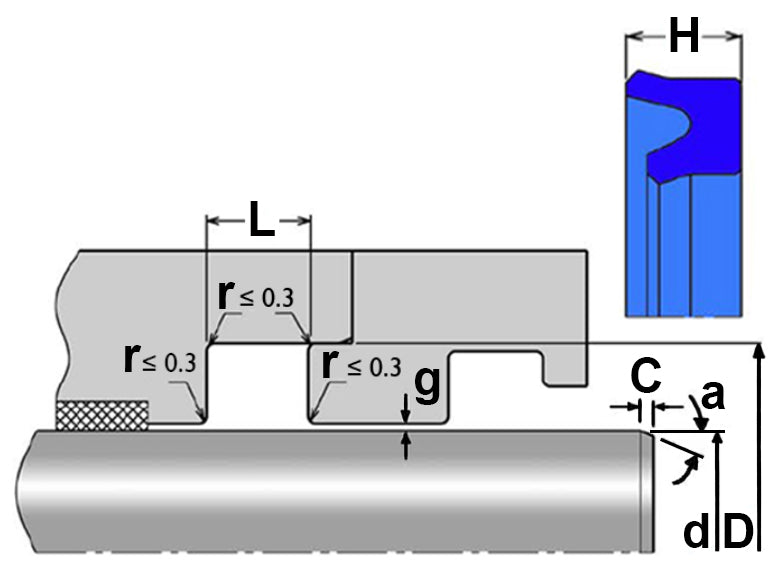

Technical
Technical
| d | 35mm |
|---|---|
| D | 45mm |
| L | 11mm |
| h | 10mm |
| C | 2.5mm |
| Inside Diameter Tolerance | f8 |
| Outside Diameter Tolerance | H10 |
| Length Tolerance | 0.2mm |
| Pressure (max) | 40 Mpa |
| Sliding Speed (max) | 0.5 m/s |
| Temperature | -40 Deg C to +100 Deg C |
| Colour | Blue |
