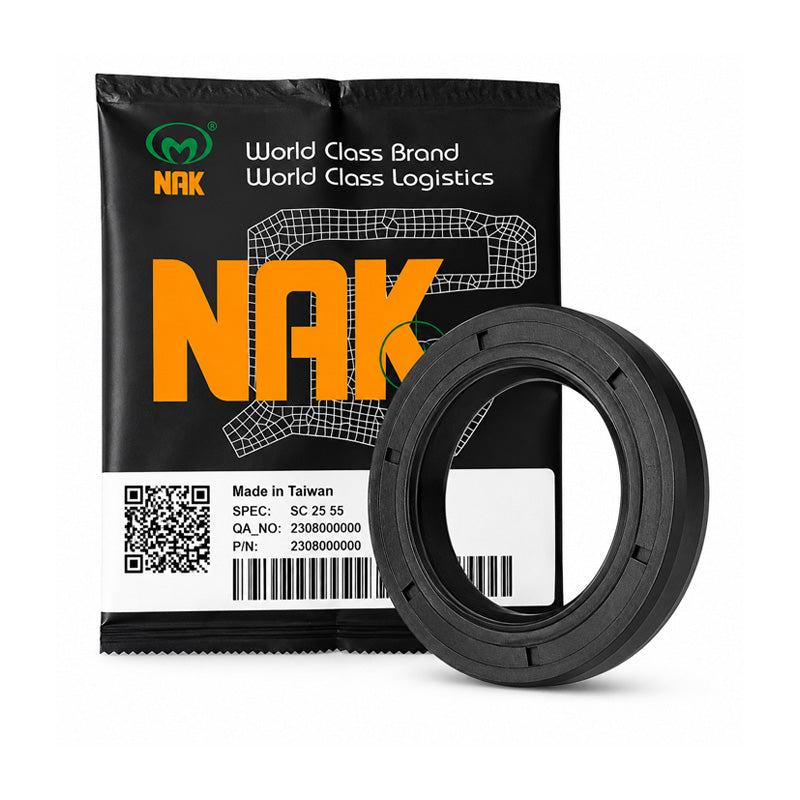

NAK 35x63.3x9/12.5mm Corrugated Nitrile Rubber Double Lip Rotary Shaft Oil Seal with Garter Spring TG - Allow 7-10 Days

NAK TG Nitrile Oil Seals: Oil seals are used in a variety of different applications in which a rotating shaft is lubricated by oil or grease. They are engineered to facilitate the smooth operation of your equipment, serving as a barrier to prevent the leakage of oils and greases while also keeping foreign substances from entering. TG type seals have a special design of corrugated nitrile rubber on the outside diameter. These types are particularly suitable for applications where the housing material is subject to large thermal expansion, i.e. aluminium housings. The TG types feature a sealing nitrile rubber lip on the inside diameter as well as an external dust lip. The TG types feature a garter spring which allows some give to prevent a build-up of friction. (Seals under 5mm width may not always feature a spring.)
Benefits: Excellent wear resistance, good running properties, high resistance to chemicals and petroleum-based fuels including petrol, diesel and LPG.

Brand / Quality:

NAK - High Quality

Inside Diameter:

35mm

Outside Diameter:

63.3mm

Width:

9mm

Seals / Shields:

Nitrile

Style:

TG

Colour:

Black
