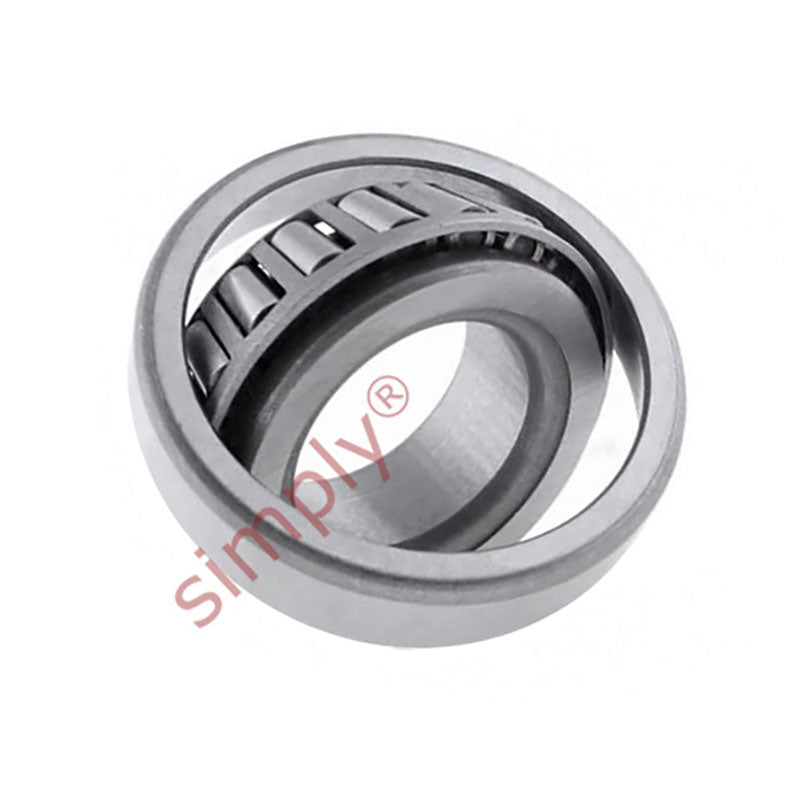

SKF 37425/2/37625/2/Q Imperial Taper Roller Bearing 4.25x6.25x0.9063 inches

Name: SKF 37425/2/37625/2/Q Imperial Taper Roller Bearing 4.25x6.25x0.9063 inches
Brand: SKF
SKU: 37425/2/37625/2/Q-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 107.95mm = 4.25 (4-1/4) inch
Outside Diameter:: 158.75mm = 6.25 (6-1/4) inch
Width:: 23mm = 0.906 (29/32) inch
Seals / Shields:: None

Technical

d	107.95mm
D	158.75mm
T	23.02mm
Dynamic load	101 kN
Static load	163 kN
Fatigue load limit Pu	18.3 kN
Reference speed	2800 rpm
Limiting speed	4300 rpm
Weight	1.4 kg
d1	132mm
B	21.438mm
C	15.875mm
r1r2 min	3.5mm
r3r4 min	3.3mm
a	37mm
da max	120mm
db min	121mm
Da min	140mm
Da max	145mm
Db min	149mm
Ca min	4mm
Cb min	7mm
ra max	3mm
rb max	3mm
Calculation factor e	0.6
Calculation factor Y	1
Calculation factor Y0	0.6
