SKU: 395A/3920-TIM

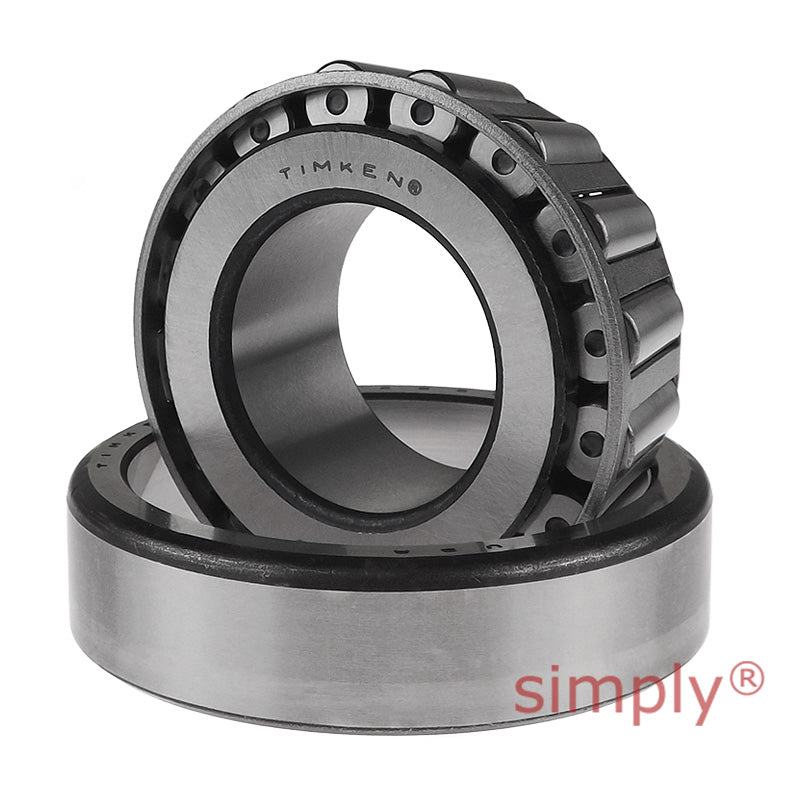

Timken 395A/3920 TS Single-Row Taper Roller Bearing 2.625x4.4375x1.0617 inch

Timken 395A/3920 TS Single-Row Taper Roller Bearing 2.625x4.4375x1.0617 inch
€89,46 ex VAT
€89,46 ex VAT
Sale Sold out

In stock

Price Break
10+ €67,98
20+ €64,16
30+ €63,40
40+ €62,64
50+ €61,87
75+ €61,11
100+ €57,29
200+ €56,53
250+ €55,76
500+ €55,00
1000+ €53,47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
66.68mm = 2.625 (2-5/8) inch
Outside Diameter:
112.71mm = 4.437 (4-7/16) inch
Width:
26.97mm = 1.062 inch
Technical
d 66.675mm = 2.625 inch
D 112.712mm = 4.4375 inch
T 26.967mm = 1.0617 inch
Dynamic (1) C1 91600N
Factors (5) e 0.4
Factors (5) Y 1.49
Dynamic (2) C90 23700N
Dynamic (2) Ca90 16300N
Factors (5) K 1.45
Static C0 125000N
Bearing B 21.996mm = 0.866 inch
Bearing C 23.812mm = 0.9375 inch
Bearing a(3) -0.8mm = -0.03 inch
Shaft max shaft fillet radius R(4) 0.8mm = 0.03 inch
Shaft backing shoulder diameter da 73mm = 2.87 inch
Shaft backing shoulder diameter db 73mm = 2.87 inch
Housing backing shoulder diameter r(4) 3.3mm = 0.13 inch
Housing backing shoulder diameter Da 106mm = 4.17 inch
Housing backing shoulder diameter Db 99mm = 3.9 inch
Cage Aa 1.8mm = 0.07 inch
Cage Ab 2mm = 0.08 inch
G1 56
G2 21.4
Cg 0.0984
