SKU: 40-2-BB-NO26-RENOLD
Renold Blue Box 40-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- €11.15 ex VAT
- Sale price
- €11,15
- Regular price
-
In stock
Quantity Price Breaks
2
€9.92
5
€9.37
10
€9.25
29
€9.14
49
€9.03
75
€8.92
100
€8.36
200
€8.25
250
€8.14
500
€8.03
1000
€7.81
SKU:
40-2-BB-NO26-RENOLD
Renold Blue Box 40-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- €11.15 ex VAT
- Sale price
- €11,15
- Regular price
-
Description

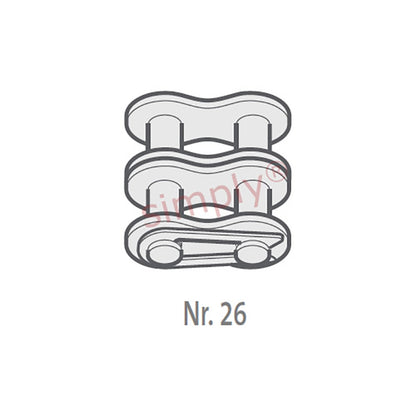

| Renold No. 26 ANSI Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.85mm |
| Roller Diameter max (C) | = | 7.92mm |
| Plate Height max (D) | = | 11.2mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 3.96mm |
| Pin Length max (H2) | = | 30.8mm |
| Connecting Link Extension max (J) | = | 2.1mm |
| Transverse Pitch nom (K) | = | 14.38mm |
| ISO606 Tensile Strength min | = | 27800 N |
| Weight | = | 0.02kg/m |
