SKU: 40-3-BB-NO58-RENOLD

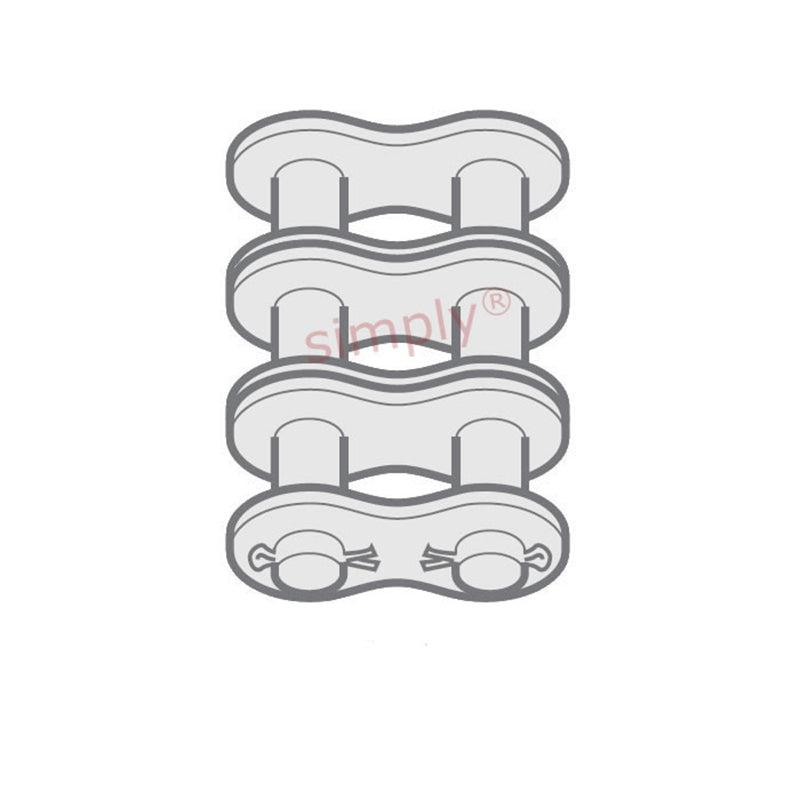

Renold Blue Box 40-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1/2 inch Pitch
- Regular price
- €15.65 ex VAT
- Sale price
- €15,65
- Regular price
-
Not in stock
Quantity Price Breaks
2
€13.93
5
€13.15
10
€12.99
29
€12.83
49
€12.68
75
€12.52
100
€11.74
200
€11.58
250
€11.42
500
€11.27
1000
€10.96
SKU:
40-3-BB-NO58-RENOLD
Renold Blue Box 40-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1/2 inch Pitch
- Regular price
- €15.65 ex VAT
- Sale price
- €15,65
- Regular price
-
Description
| Renold No. 58 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.85mm |
| Roller Diameter max (C) | = | 7.92mm |
| Plate Height max (D) | = | 11.2mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 3.96mm |
| Pin Length max (H2) | = | 45.1mm |
| Connecting Link Extension max (J) | = | 2.1mm |
| Transverse Pitch nom (K) | = | 14.38mm |
| ISO606 Tensile Strength min | = | 41700 N |
| Weight | = | 0.03kg/m |
