SKU: 40x48x5.95_WP1_NAK

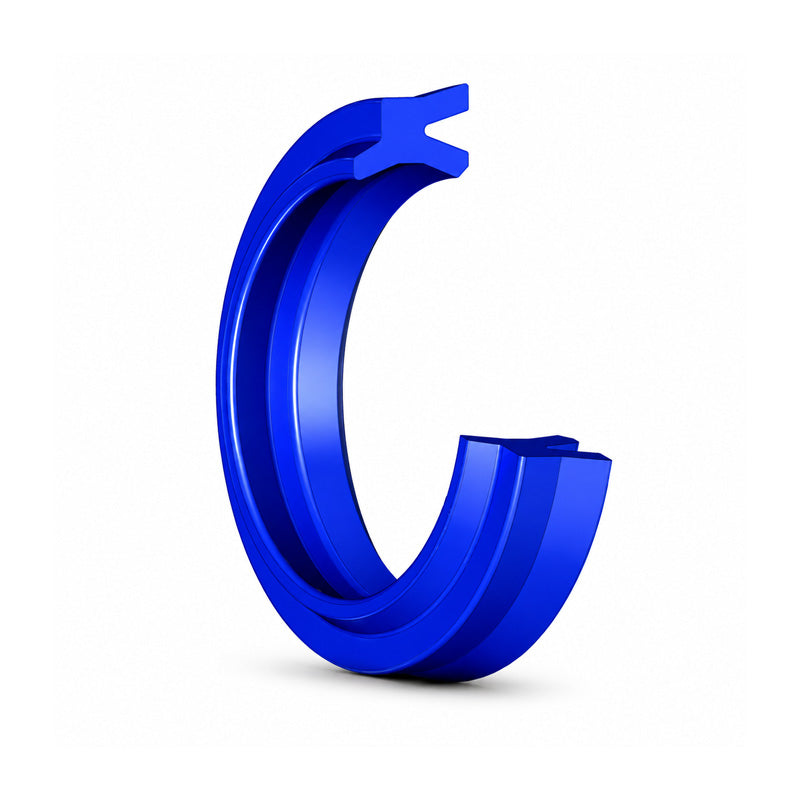

NAK 40x48x5.95mm WP1 Polyurethane Wiper Seal - Allow 7-10 Days
NAK 40x48x5.95mm WP1 Polyurethane Wiper Seal - Allow 7-10 Days
Out of stock
Share this product
Description
Description
NAK WP1 Wiper Seals: WP1 wiper seals are specialised dust-exclusion seals engineered to safeguard hydraulic and pneumatic systems against contamination. As the first variant in NAK's Type WP series, the WP1 is designed with a straightforward yet highly effective profile that ensures long-term protection in heavy-duty applications. The primary purpose of the WP1 is to wipe away dust, dirt, mud, moisture, and other external debris to help maintain hydraulic system efficiency.
Benefits: Durable, easy installation, reliable performance
- Brand / Quality:
- NAK - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 48mm
- Length:
- 5.95mm
- Material:
- Polyurethane
- Style:
- WP1
- Colour:
- Blue
Technical
Technical
| d | 40mm |
|---|---|
| D | 48mm |
| L | 5.15mm |
| b | 2mm |
| t | 4.65mm |
| h | 5.95mm |
| c | 2mm |
| Inside Diameter Tolerance | f8 |
| Outside Diameter Tolerance | 0.008mm |
| Length Tolerance | 0.2mm |
| Running Speed v | 1 m/s |
| Temperature | -40 Deg C to +100 Deg C |
| Colour | Blue |
