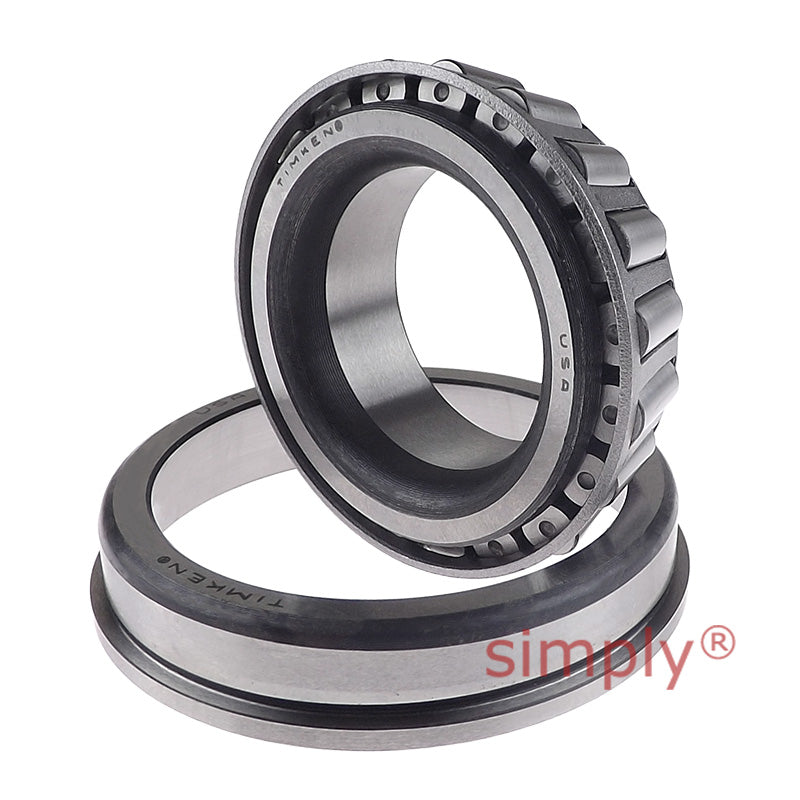

• Timken 42362/42587B TSF Single-Row Taper Roller Bearing 3.625x5.875x1.25 inch
1 1

SKU: 42362/42587B-TIM

Timken 42362/42587B TSF Single-Row Taper Roller Bearing 3.625x5.875x1.25 inch

Timken 42362/42587B TSF Single-Row Taper Roller Bearing 3.625x5.875x1.25 inch
€417,48 ex VAT
€417,48 ex VAT
Sale Sold out

In stock

Price Break
10+ €317,27
20+ €299,45
30+ €295,88
40+ €292,32
50+ €288,75
75+ €285,19
100+ €267,36
200+ €263,80
250+ €260,23
500+ €256,67
1000+ €249,54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
92.08mm = 3.625 (3-5/8) inch
Outside Diameter:
149.23mm = 5.875 (5-7/8) inch
Width:
31.75mm = 1.25 (1-1/4) inch
Technical
d 92.075mm = 3.625 inch
D 149.225mm = 5.875 inch
T1 12.7mm = 0.5 inch
Dynamic (1) C1 151000N
Factors (5) e 0.49
Factors (5) Y 1.22
Dynamic (2) C90 39100N
Dynamic (2) Ca90 33000N
Factors (5) K 1.19
Static Co 241000N
Bearing B 28.971mm = 1.1406 inch
Bearing C 24.608mm = 0.9688 inch
Bearing a(3) 3mm = 0.12 inch
Bearing D1 154.681mm = 6.0898 inch
Bearing C2 5.558mm = 0.2188 inch
Shaft max shaft fillet radius R(4) 3.5mm = 0.14 inch
Shaft backing shoulder diameter da 101mm = 3.98 inch
Shaft backing shoulder diameter db 107mm = 4.21 inch
Housing backing shoulder diameter Da 152mm = 5.98 inch
G1 130
G2 37.2
Cg 0.1386
