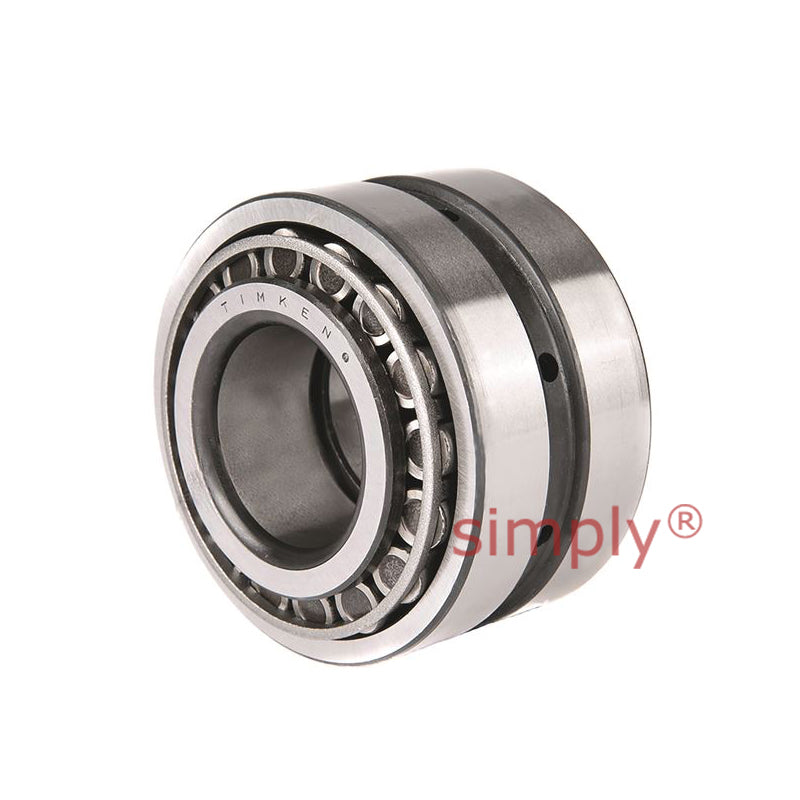

Timken 438/432D/800002 TDO Double Outer Race Taper Roller Bearing 1.75x3.75x2.4376x2 inch
Timken 438/432D/800002 TDO Double Outer Race Taper Roller Bearing 1.75x3.75x2.4376x2 inch
Out of stock
Description
Description

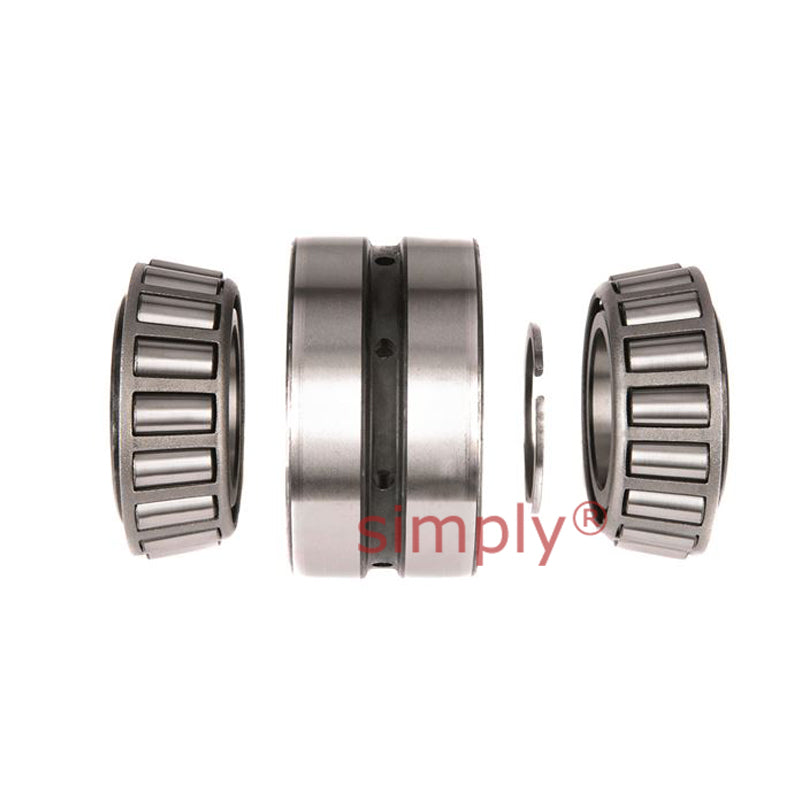

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 44.45mm = 1.75 inch
- Outside Diameter:
- 95.25mm = 3.75 inch
- Width:
- 61.92mm = 2.4376 inch
Technical
Technical
| d | 44.45mm = 1.75 inch |
|---|---|
| D | 95.25mm = 3.75 inch |
| T | 61.915mm = 2.4376 inch |
| C | 50.8mm = 2 inch |
| Dynamic (1) C1 | 205000N |
| Factors (5) e | 0.28 |
| Factors (5) Y1 | 2.37 |
| Factors (5) Y2 | 3.53 |
| Dynamic (2) C90 | 30500N |
| Dynamic (2) Ca90 | 14800N |
| Dynamic (2) C90(2) | 53000N |
| Factors (5) K | 2.05 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 57mm = 2.24 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 87mm = 3.43 inch |
| G1 | 42.5 |
| G2 | 11.3 |
| Cg | 0.0805 |
