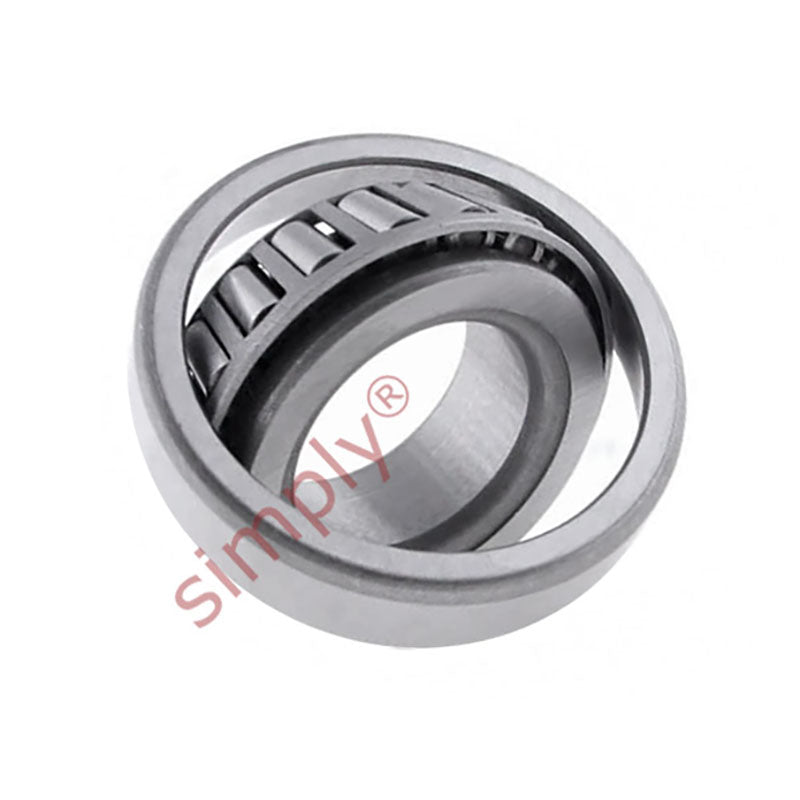

SKF 47896/47820/Q Imperial Taper Roller Bearing 3.75x5.75x1.3125 inches

Name: SKF 47896/47820/Q Imperial Taper Roller Bearing 3.75x5.75x1.3125 inches
Brand: SKF
SKU: 47896/47820/Q-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 95.25mm = 3.75 (3-3/4) inch
Outside Diameter:: 146.05mm = 5.75 (5-3/4) inch
Width:: 33.33mm = 1.312 (1-5/16) inch
Seals / Shields:: None

Technical

d	95.25mm
D	146.05mm
T	33.338mm
Dynamic load	168 kN
Static load	280 kN
Fatigue load limit Pu	31.5 kN
Reference speed	3200 rpm
Limiting speed	4500 rpm
Weight	1.9 kg
d1	120mm
B	34.925mm
C	26.195mm
r1r2 min	3.5mm
r3r4 min	3.3mm
a	32mm
da max	105mm
db min	107mm
Da min	128mm
Da max	138.5mm
Db min	141mm
Ca min	6mm
Cb min	7mm
ra max	3mm
rb max	3mm
Calculation factor e	0.44
Calculation factor Y	1.35
Calculation factor Y0	0.8
