SKU: 480H-200-96
480H200 Major Brand Synchronous Toothed Belt 2.00 inch Wide 48 inch Length 96 Teeth Allow 2-3 Days
480H200 Major Brand Synchronous Toothed Belt 2.00 inch Wide 48 inch Length 96 Teeth Allow 2-3 Days
Regular price
€27,59
ex VAT
Regular price
Sale price
€27,59
ex VAT
In stock
Price Break
3+
€20,97
5+
€19,79
10+
€19,56
15+
€19,32
20+
€19,09
30+
€18,85
40+
€17,67
50+
€17,44
60+
€17,20
75+
€16,96
100+
€16,49
Quantity
Couldn't load pickup availability
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Major Brand - High Quality
- Belt Width Approx:
- 50.8mm = 2 inch
- Belt Depth Approx:
- 4.3mm
- Belt Length Approx:
- 1219.2mm = 48 inch
- Number of Teeth:
- 96

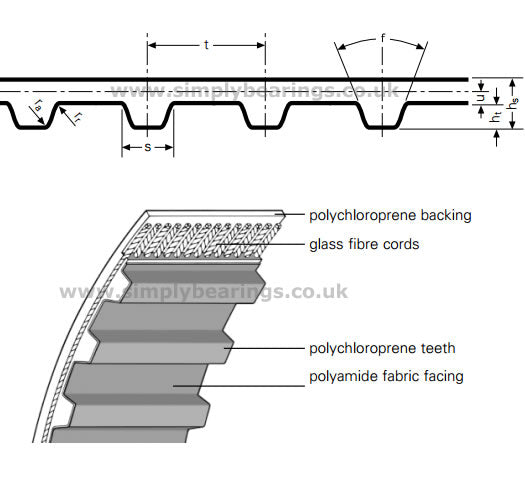

Technical
Technical
| Belt width | 2.00 inch = 50.80mm |
|---|---|
| Pitch length | 48 inch = 1219.2mm |
| Number of teeth | 96 |
| Tooth pitch t | 0.5 inch |
| Flank angle f | 40 degrees |
| Tooth height h<sub>t</sub> | 0.09015748 inch |
| Pitch zone u | 0.027007874 inch |
