SKU: 4T-33008-NTN

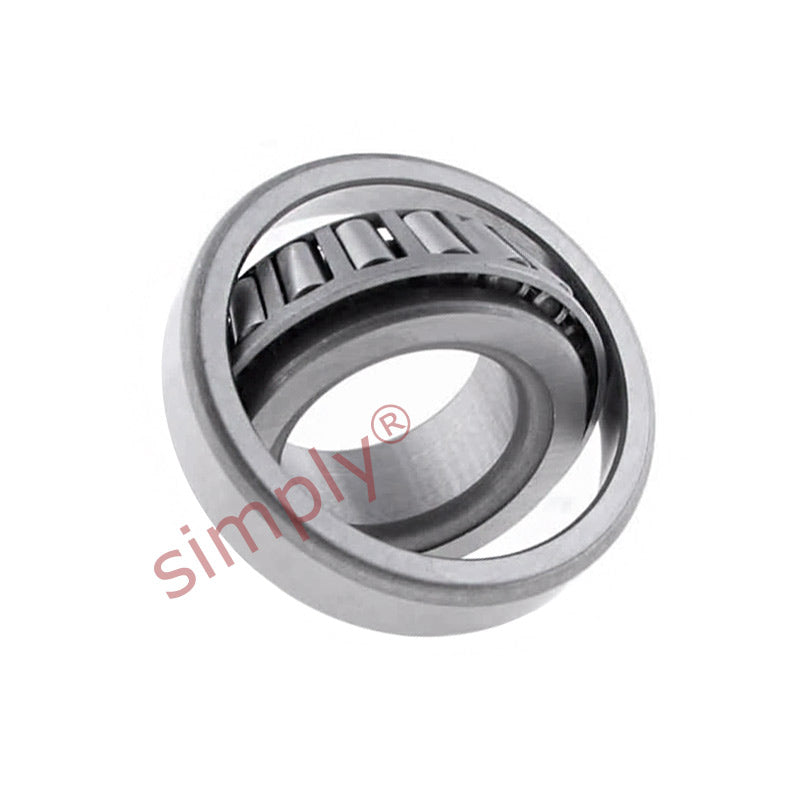

NTN 4T-33008 Tapered Roller Bearing Cup and Cone Set 40x68x22mm

NTN 4T-33008 Tapered Roller Bearing Cup and Cone Set 40x68x22mm
Regular price €36,18 ex VAT
Regular price Sale price €36,18 ex VAT
Sale Sold out

In stock

Price Break
3+ €27,49
5+ €25,95
10+ €25,64
25+ €25,33
49+ €25,02
74+ €24,71
99+ €23,17
199+ €22,86
249+ €22,55
499+ €22,24
999+ €21,62
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 40mm
D 68mm
T 22mm
B 22mm
C 18mm
r<sub>s</sub> min 1mm
r<sub>ls</sub> min 1mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 66kN
Static load C<sub>or</sub> 82.5kN
Allowable Speed in grease 5300rpm
Allowable Speed in oil 7100rpm
--- Abutment dimensions
ISO Dimension series 2BE
d<sub>a</sub> min 45.5mm
d<sub>b</sub> max 46mm
D<sub>a</sub> max 62.5mm
D<sub>a</sub> min 58.5mm
D<sub>b</sub> min 65mm
S<sub>a</sub> min 2.5mm
S<sub>b</sub> min 4mm
r<sub>as</sub> max 1mm
r<sub>1as</sub> max 1mm
Load center a 15mm
Constant e 0.28mm
Y<sub>2</sub> 2.12mm
Y<sub>0</sub> 1.17mm
Weight 0.32kg
