SKU: 4T-33205-NTN

NTN 4T-33205 Tapered Roller Bearing Cup and Cone Set 25x52x22mm

NTN 4T-33205 Tapered Roller Bearing Cup and Cone Set 25x52x22mm
Regular price €22,81 ex VAT
Regular price Sale price €22,81 ex VAT
Sale Sold out

In stock

Price Break
3+ €17,34
5+ €16,36
10+ €16,17
25+ €15,97
49+ €15,78
74+ €15,58
99+ €14,61
199+ €14,42
249+ €14,22
499+ €14,03
999+ €13,64
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

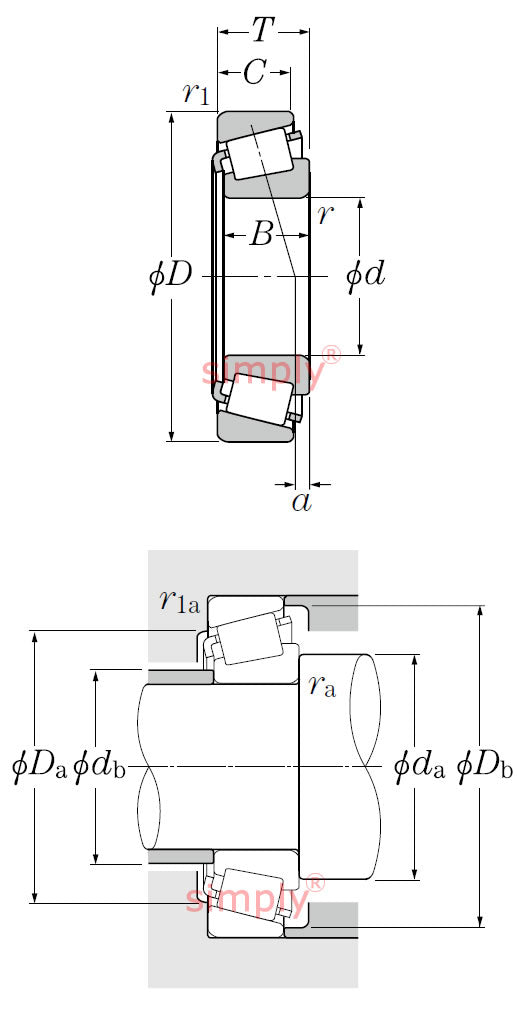

--- Bearing dimensions
d 25mm
D 52mm
T 22mm
B 22mm
C 18mm
r<sub>s</sub> min 1mm
r<sub>ls</sub> min 1mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 52.5kN
Static load C<sub>or</sub> 57.5kN
Allowable Speed in grease 7300rpm
Allowable Speed in oil 9800rpm
--- Abutment dimensions
ISO Dimension series 2DE
d<sub>a</sub> min 30.5mm
d<sub>b</sub> max 30.5mm
D<sub>a</sub> max 46.5mm
D<sub>a</sub> min 41mm
D<sub>b</sub> min 49.5mm
S<sub>a</sub> min 4mm
S<sub>b</sub> min 4mm
r<sub>as</sub> max 1mm
r<sub>1as</sub> max 1mm
Load center a 14mm
Constant e 0.35mm
Y<sub>2</sub> 1.71mm
Y<sub>0</sub> 0.94mm
Weight 0.219kg
