SKU: 50-2-SYN-NO30-RENOLD

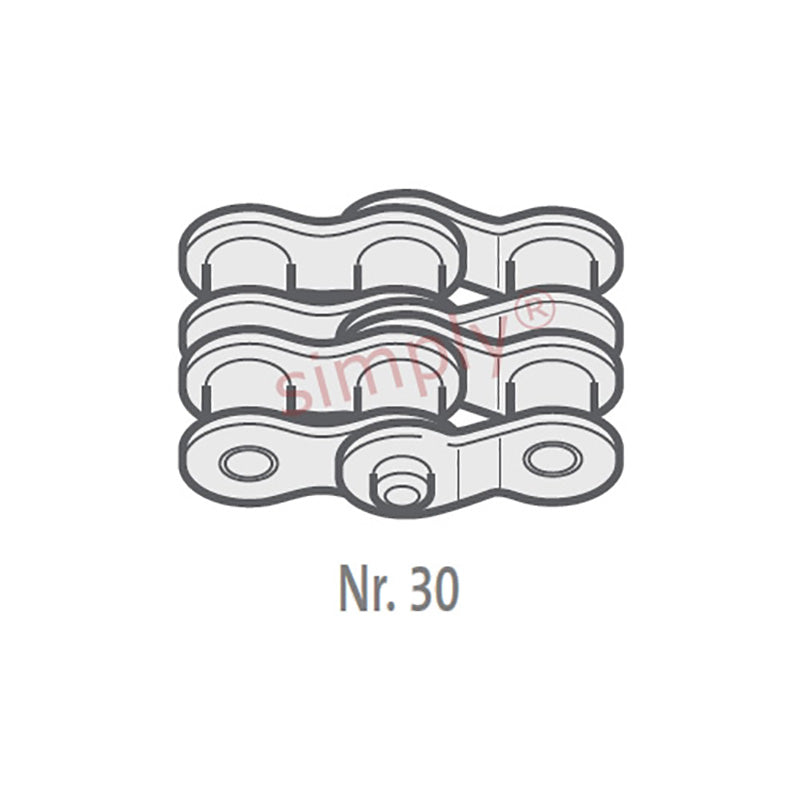

Renold Synergy 50-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- €49.91 ex VAT
- Sale price
- €49,91
- Regular price
-
Not in stock
Quantity Price Breaks
2
€44.42
5
€41.92
10
€41.43
29
€40.93
49
€40.43
75
€39.93
100
€37.43
200
€36.93
250
€36.43
500
€35.94
1000
€34.94
SKU:
50-2-SYN-NO30-RENOLD
Renold Synergy 50-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- €49.91 ex VAT
- Sale price
- €49,91
- Regular price
-
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.4mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 2.04mm |
| Plate Width Outer max (F) | = | 2.04mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 38.4mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| Transverse Pitch nom (K) | = | 18.11mm |
| ISO606 Tensile Strength min | = | 43600 N |
| Weight | = | 0.01kg/m |
