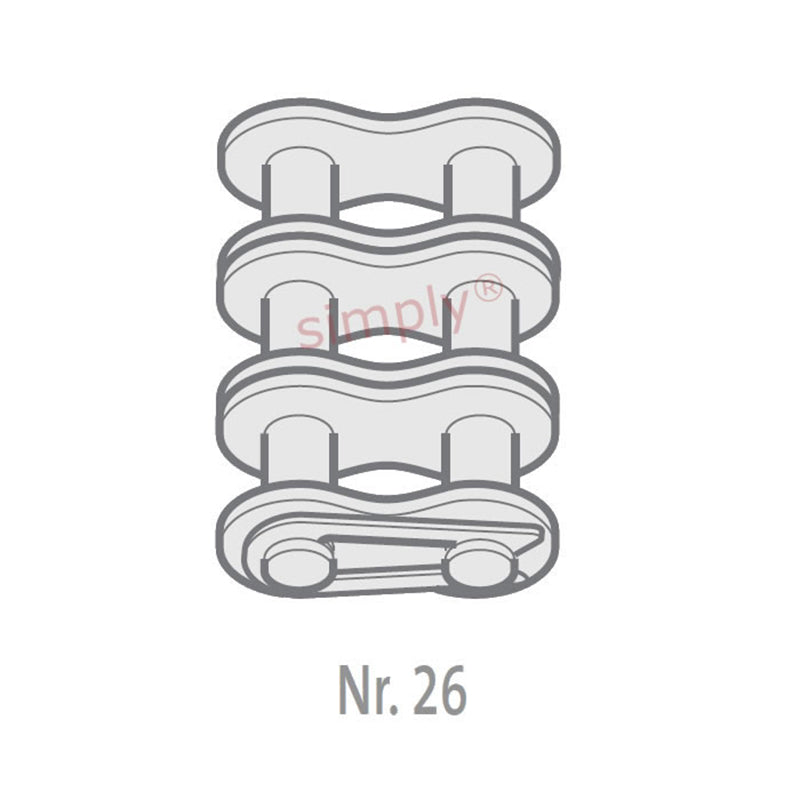

• Renold Blue Box 50-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
1 1

SKU: 50-3-BB-NO26-RENOLD

Renold Blue Box 50-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch

Renold Blue Box 50-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
€15,29 ex VAT
€15,29 ex VAT
Sale Sold out

In stock

Price Break
2+ €11,62
5+ €10,97
10+ €10,84
29+ €10,71
49+ €10,57
75+ €10,44
100+ €9,79
200+ €9,66
250+ €9,53
500+ €9,40
1000+ €9,14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ANSI_NO26T_DESC
Brand / Quality:
Renold - High Quality
Pitch:
15.88mm = 0.625 (5/8) inch
Technical
Pitch (A) 0.625 inch
Pitch (A) 15.875mm
Inside Width min (B) 9.4mm
Roller Diameter max (C) 10.16mm
Plate Height max (D) 14.6mm
Plate Width Inner max (E) 2.04mm
Plate Width Outer max (F) 2.04mm
Pin Diameter max (G) 5.08mm
Pin Length max (H2) 56.5mm
Connecting Link Extension max (J) 2.7mm
Transverse Pitch nom (K) 18.11mm
ISO606 Tensile Strength min 65400 N
Weight 0.025kg/m
