SKU: 50-3-SYN-NO30-RENOLD
Renold Synergy 50-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- €70.91 ex VAT
- Sale price
- €70,91
- Regular price
-
Not in stock
Quantity Price Breaks
2
€63.11
5
€59.56
10
€58.86
29
€58.15
49
€57.44
75
€56.73
100
€53.18
200
€52.47
250
€51.76
500
€51.06
1000
€49.64
SKU:
50-3-SYN-NO30-RENOLD
Renold Synergy 50-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- €70.91 ex VAT
- Sale price
- €70,91
- Regular price
-
Description

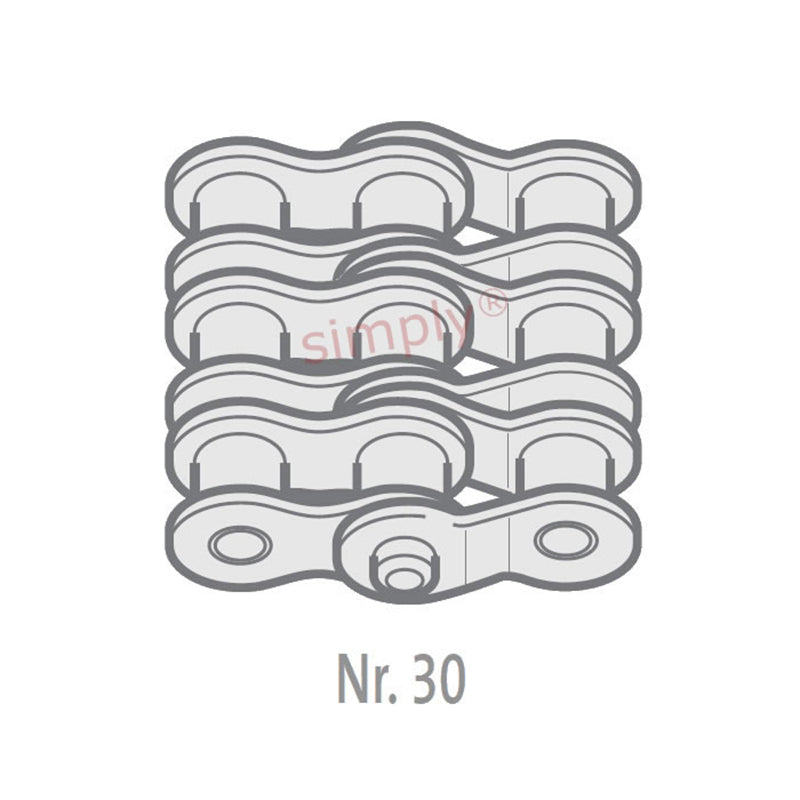

| Renold No. 30 ANSI Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.4mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 2.04mm |
| Plate Width Outer max (F) | = | 2.04mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 56.5mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| Transverse Pitch nom (K) | = | 18.11mm |
| ISO606 Tensile Strength min | = | 65400 N |
| Weight | = | 0.01kg/m |
