SKU: 51120-CDX

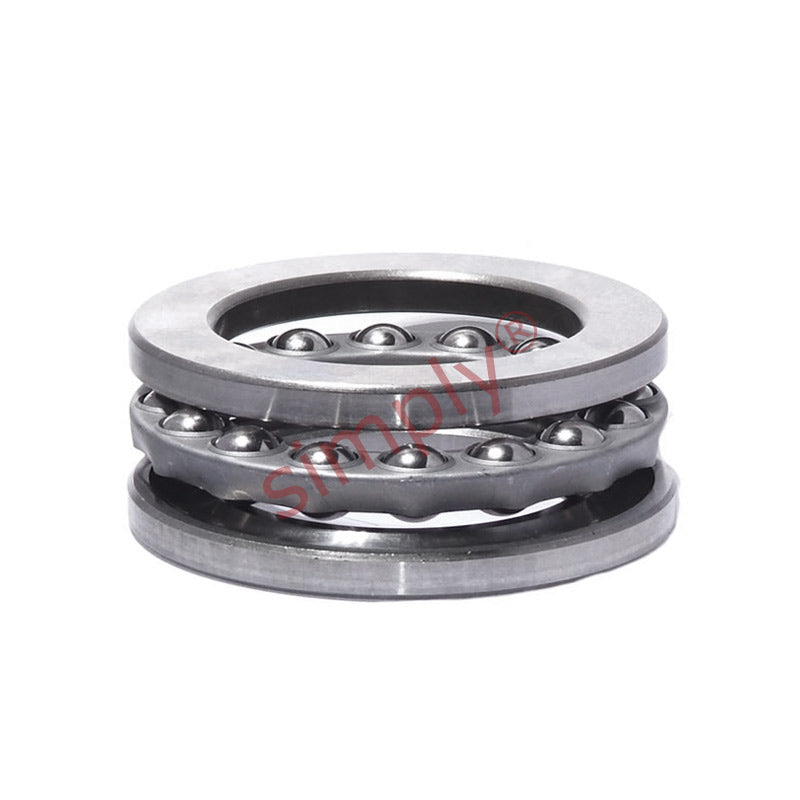

Codex 51120 Single Thrust Ball Bearing 100x135x25mm
- Regular price
- €91.20 ex VAT
- Sale price
- €91,20
- Regular price
-
In stock
Quantity Price Breaks
10
€81.17
19
€76.61
29
€75.70
39
€74.78
49
€73.87
74
€72.96
99
€68.40
199
€67.49
249
€66.58
499
€65.66
999
€63.84
SKU:
51120-CDX
Codex 51120 Single Thrust Ball Bearing 100x135x25mm
- Regular price
- €91.20 ex VAT
- Sale price
- €91,20
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 100 |
| D | = | 135 |
| H | = | 25 |
| Dynamic Load | = | 85.2 kN |
| Static Load | = | 290 kN |
| Pu | = | 10 |
| A | = | 0.44 |
| Ref Speed | = | 2400 rpm |
| Limiting Speed | = | 3200 rpm |
| kg | = | 0.97 |
| d1 | = | 135 |
| D1 | = | 102 |
| r1r2 min | = | 1 |
| da min | = | 121 |
| Da max | = | 114 |
| ra max | = | 1 |
