SKU: 51201-CDX

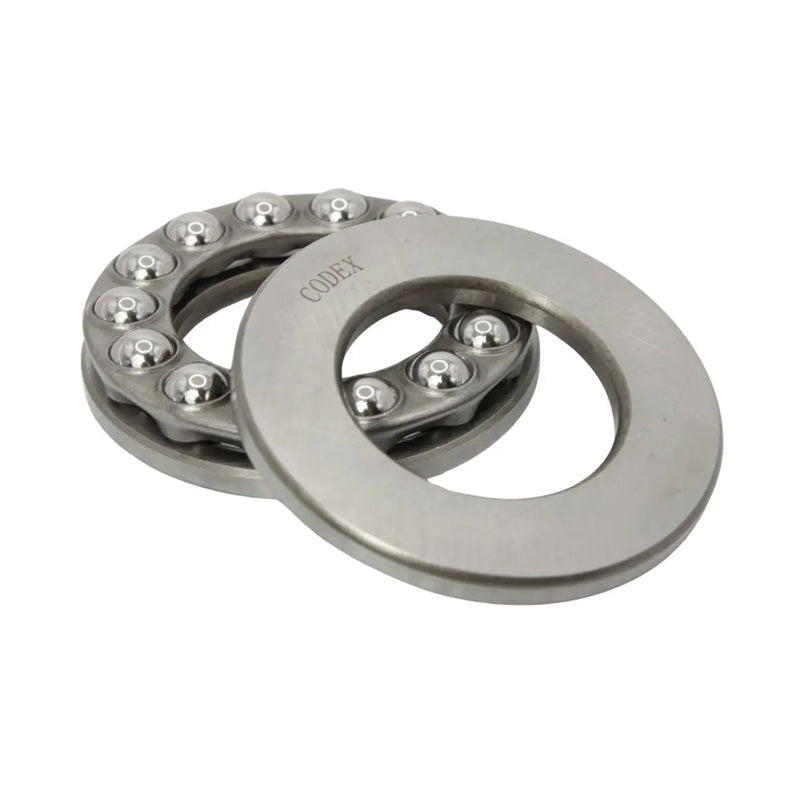

Codex 51201 Single Thrust Ball Bearing 12x28x11mm
- Regular price
- €14.94 ex VAT
- Sale price
- €14,94
- Regular price
-
In stock
Quantity Price Breaks
10
€13.30
19
€12.55
29
€12.40
39
€12.25
49
€12.10
74
€11.95
99
€11.21
199
€11.06
249
€10.91
499
€10.76
999
€10.46
SKU:
51201-CDX
Codex 51201 Single Thrust Ball Bearing 12x28x11mm
- Regular price
- €14.94 ex VAT
- Sale price
- €14,94
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 12 |
| D | = | 28 |
| H | = | 11 |
| Dynamic Load | = | 13.3 kN |
| Static Load | = | 20.8 kN |
| Pu | = | 0.77 |
| A | = | 0.0022 |
| Ref Speed | = | 8000 rpm |
| Limiting Speed | = | 11000 rpm |
| kg | = | 0.034 |
| d1 | = | 28 |
| D1 | = | 14 |
| r1r2 min | = | 0.6 |
| da min | = | 22 |
| Da max | = | 18 |
| ra max | = | 0.6 |
