SKU: 51203-CDX

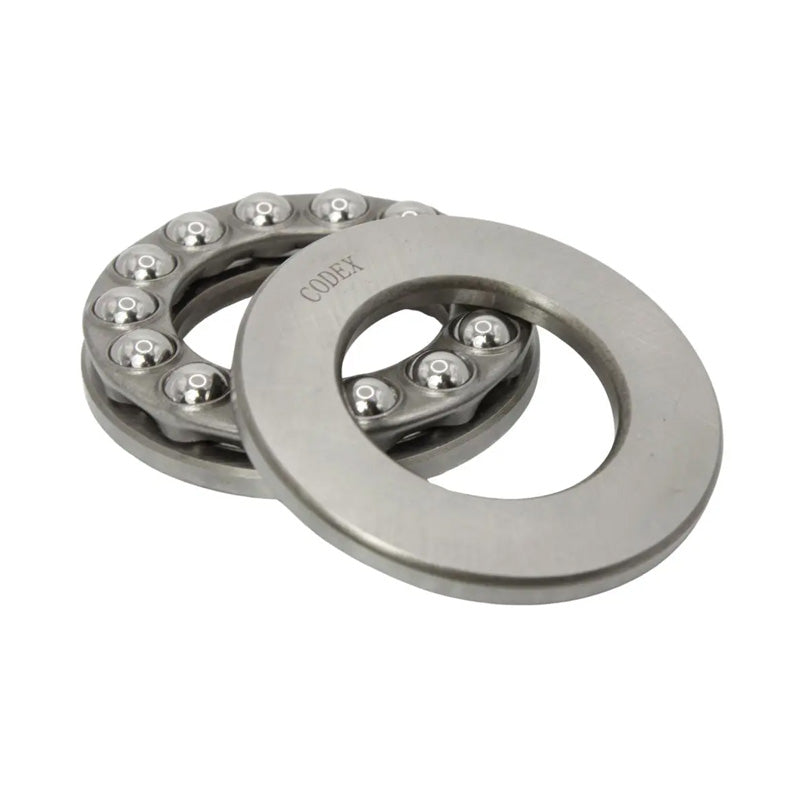

Codex 51203 Single Thrust Ball Bearing 17x35x12mm
- Regular price
- €14.98 ex VAT
- Sale price
- €14,98
- Regular price
-
In stock
Quantity Price Breaks
10
€13.33
19
€12.58
29
€12.43
39
€12.28
49
€12.13
74
€11.98
99
€11.24
199
€11.09
249
€10.94
499
€10.79
999
€10.49
SKU:
51203-CDX
Codex 51203 Single Thrust Ball Bearing 17x35x12mm
- Regular price
- €14.98 ex VAT
- Sale price
- €14,98
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 17 |
| D | = | 35 |
| H | = | 12 |
| Dynamic Load | = | 17.2 kN |
| Static Load | = | 30 kN |
| Pu | = | 1.1 |
| A | = | 0.0047 |
| Ref Speed | = | 6700 rpm |
| Limiting Speed | = | 9500 rpm |
| kg | = | 0.053 |
| d1 | = | 35 |
| D1 | = | 19 |
| r1r2 min | = | 0.6 |
| da min | = | 28 |
| Da max | = | 24 |
| ra max | = | 0.6 |
