SKU: 51205-CDX

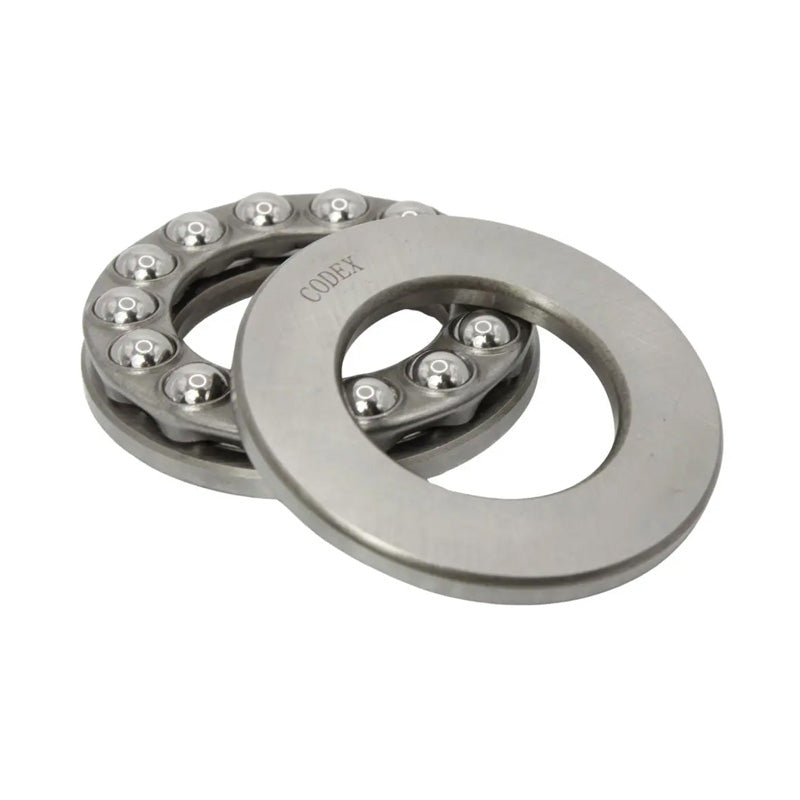

Codex 51205 Single Thrust Ball Bearing 25x47x15mm
- Regular price
- €17.46 ex VAT
- Sale price
- €17,46
- Regular price
-
In stock
Quantity Price Breaks
10
€15.54
19
€14.67
29
€14.49
39
€14.32
49
€14.14
74
€13.97
99
€13.10
199
€12.92
249
€12.75
499
€12.57
999
€12.22
SKU:
51205-CDX
Codex 51205 Single Thrust Ball Bearing 25x47x15mm
- Regular price
- €17.46 ex VAT
- Sale price
- €17,46
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 25 |
| D | = | 47 |
| H | = | 15 |
| Dynamic Load | = | 27.6 kN |
| Static Load | = | 55 kN |
| Pu | = | 2.04 |
| A | = | 0.015 |
| Ref Speed | = | 5300 rpm |
| Limiting Speed | = | 7500 rpm |
| kg | = | 0.11 |
| d1 | = | 47 |
| D1 | = | 27 |
| r1r2 min | = | 0.6 |
| da min | = | 38 |
| Da max | = | 34 |
| ra max | = | 0.6 |
