SKU: 51208-CDX

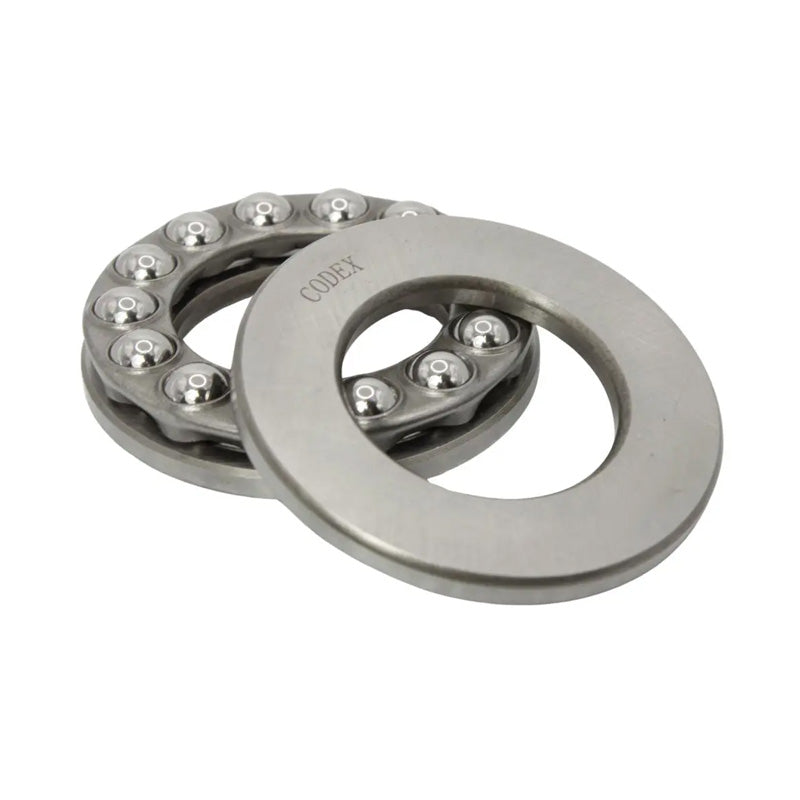

Codex 51208 Single Thrust Ball Bearing 40x68x19mm
- Regular price
- €27.30 ex VAT
- Sale price
- €27,30
- Regular price
-
In stock
Quantity Price Breaks
10
€24.30
19
€22.93
29
€22.66
39
€22.39
49
€22.11
74
€21.84
99
€20.48
199
€20.20
249
€19.93
499
€19.66
999
€19.11
SKU:
51208-CDX
Codex 51208 Single Thrust Ball Bearing 40x68x19mm
- Regular price
- €27.30 ex VAT
- Sale price
- €27,30
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 40 |
| D | = | 68 |
| H | = | 19 |
| Dynamic Load | = | 46.8 kN |
| Static Load | = | 106 kN |
| Pu | = | 4 |
| A | = | 0.058 |
| Ref Speed | = | 3800 rpm |
| Limiting Speed | = | 5300 rpm |
| kg | = | 0.28 |
| d1 | = | 68 |
| D1 | = | 42 |
| r1r2 min | = | 1 |
| da min | = | 57 |
| Da max | = | 51 |
| ra max | = | 1 |
