SKU: 51209-CDX

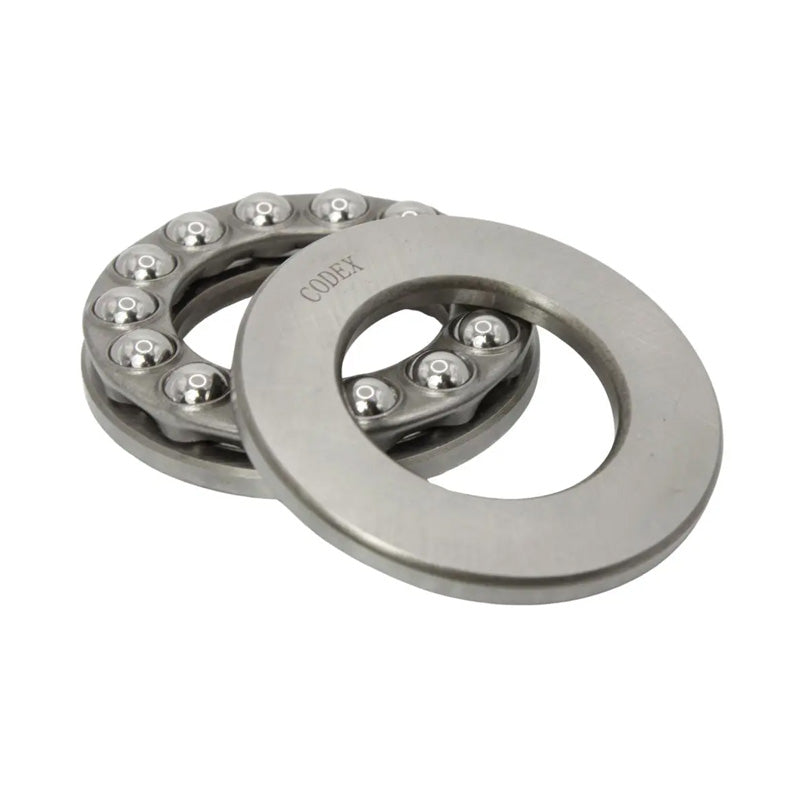

Codex 51209 Single Thrust Ball Bearing 45x73x20mm
- Regular price
- €29.92 ex VAT
- Sale price
- €29,92
- Regular price
-
In stock
Quantity Price Breaks
10
€26.63
19
€25.13
29
€24.83
39
€24.53
49
€24.24
74
€23.94
99
€22.44
199
€22.14
249
€21.84
499
€21.54
999
€20.94
SKU:
51209-CDX
Codex 51209 Single Thrust Ball Bearing 45x73x20mm
- Regular price
- €29.92 ex VAT
- Sale price
- €29,92
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 45 |
| D | = | 73 |
| H | = | 20 |
| Dynamic Load | = | 39 kN |
| Static Load | = | 86.5 kN |
| Pu | = | 3.2 |
| A | = | 0.038 |
| Ref Speed | = | 3600 rpm |
| Limiting Speed | = | 5000 rpm |
| kg | = | 0.3 |
| d1 | = | 73 |
| D1 | = | 47 |
| r1r2 min | = | 1 |
| da min | = | 62 |
| Da max | = | 56 |
| ra max | = | 1 |
