SKU: 51307-CDX

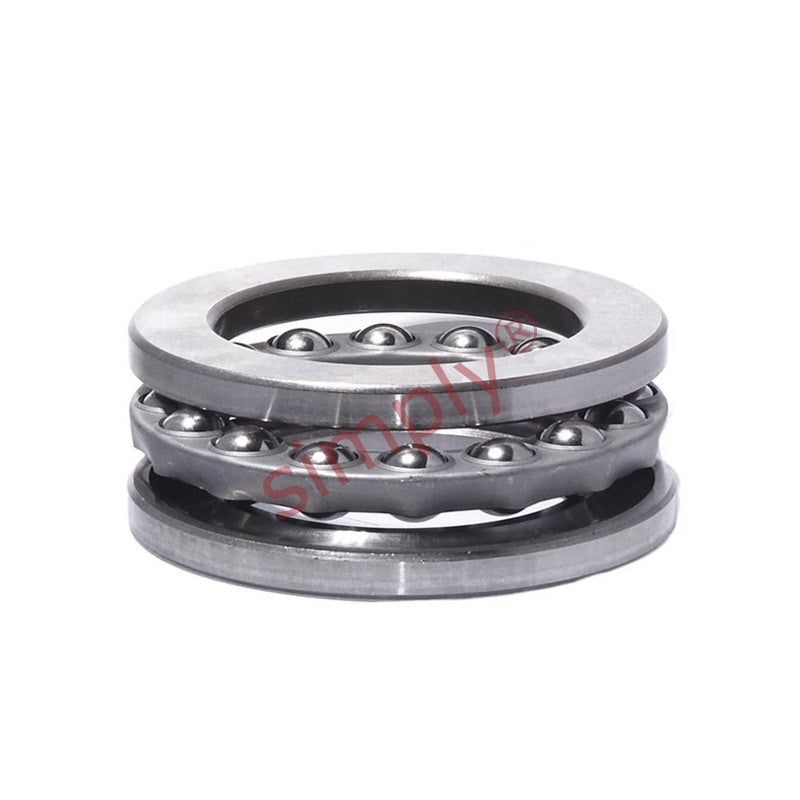

Codex 51307 Single Thrust Ball Bearing 35x68x24mm
- Regular price
- €34.15 ex VAT
- Sale price
- €34,15
- Regular price
-
In stock
Quantity Price Breaks
10
€30.39
19
€28.69
29
€28.34
39
€28.00
49
€27.66
74
€27.32
99
€25.61
199
€25.27
249
€24.93
499
€24.59
999
€23.91
SKU:
51307-CDX
Codex 51307 Single Thrust Ball Bearing 35x68x24mm
- Regular price
- €34.15 ex VAT
- Sale price
- €34,15
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 35 |
| D | = | 68 |
| H | = | 24 |
| Dynamic Load | = | 49.4 kN |
| Static Load | = | 96.5 kN |
| Pu | = | 3.55 |
| A | = | 0.048 |
| Ref Speed | = | 3200 rpm |
| Limiting Speed | = | 4500 rpm |
| kg | = | 0.39 |
| d1 | = | 68 |
| D1 | = | 37 |
| r1r2 min | = | 1 |
| da min | = | 55 |
| Da max | = | 48 |
| ra max | = | 1 |
