SKU: 51320-CDX

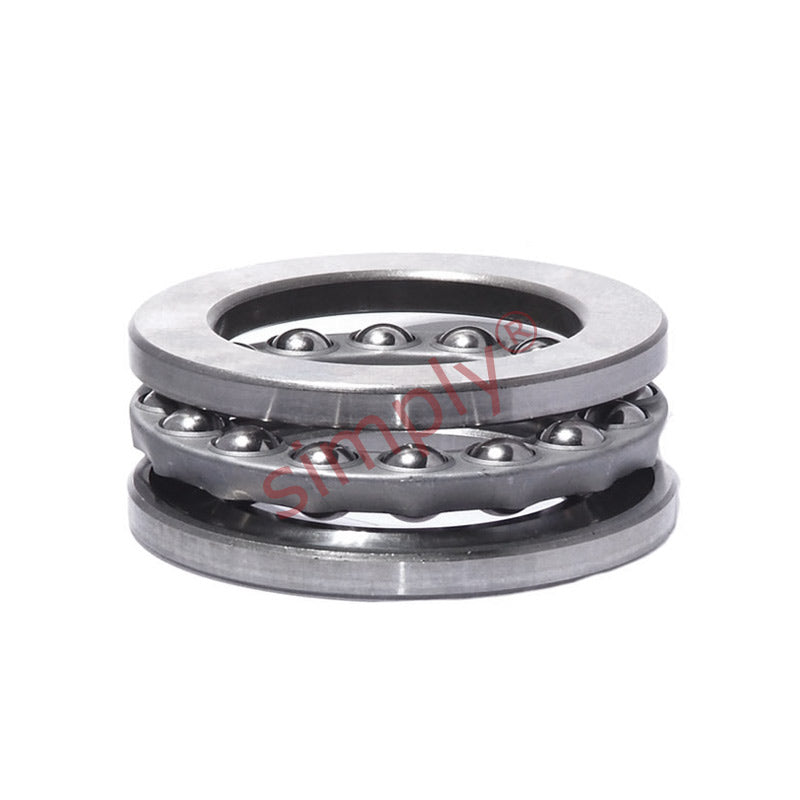

Codex 51320 Single Thrust Ball Bearing 100x170x55mm
- Regular price
- €326.26 ex VAT
- Sale price
- €326,26
- Regular price
-
In stock
Quantity Price Breaks
10
€290.37
19
€274.06
29
€270.80
39
€267.53
49
€264.27
74
€261.01
99
€244.70
199
€241.43
249
€238.17
499
€234.91
999
€228.38
SKU:
51320-CDX
Codex 51320 Single Thrust Ball Bearing 100x170x55mm
- Regular price
- €326.26 ex VAT
- Sale price
- €326,26
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 100 |
| D | = | 170 |
| H | = | 55 |
| Dynamic Load | = | 229 kN |
| Static Load | = | 610 kN |
| Pu | = | 19.6 |
| A | = | 1.9 |
| Ref Speed | = | 1400 rpm |
| Limiting Speed | = | 1900 rpm |
| kg | = | 4.95 |
| d1 | = | 170 |
| D1 | = | 103 |
| r1r2 min | = | 1.5 |
| da min | = | 142 |
| Da max | = | 128 |
| ra max | = | 1.5 |
