SKU: 5208-2RS-KSM

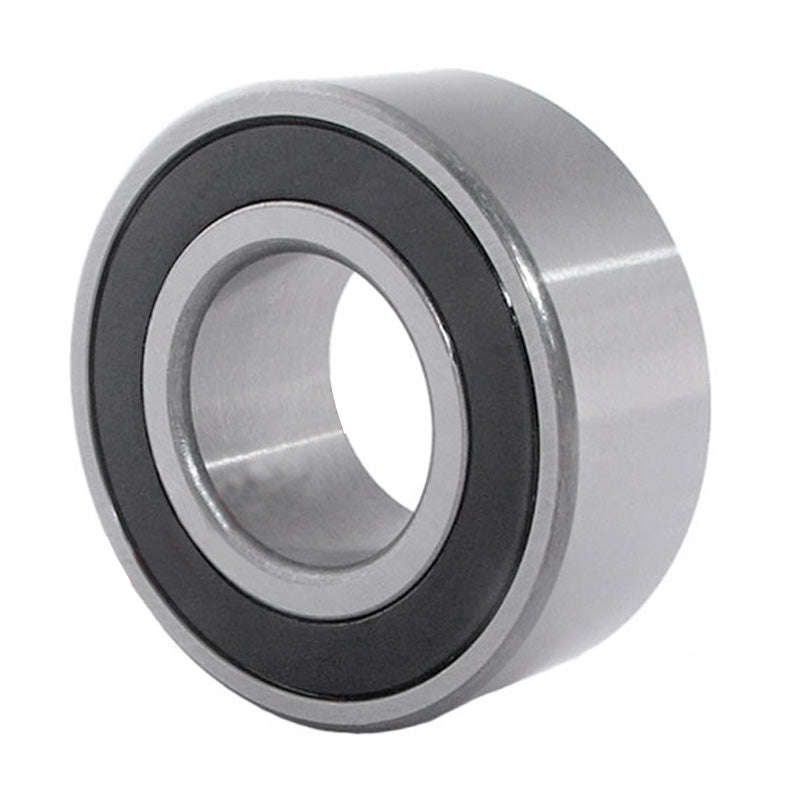

KSM 52082RS Rubber Sealed Double Row Angular Contact Ball Bearing 40x80x30.2mm
KSM 52082RS Rubber Sealed Double Row Angular Contact Ball Bearing 40x80x30.2mm
Regular price
€45,28
ex VAT
Regular price
Sale price
€45,28
ex VAT
Equivalent to: 32082RS
In stock
Price Break
4+
€34,41
9+
€32,48
19+
€32,09
29+
€31,70
49+
€31,32
99+
€30,93
179+
€29,00
249+
€28,61
499+
€28,22
699+
€27,84
999+
€27,06
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- KSM - Good Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 30.2mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| --- | Bearing Dimensions |
|---|---|
| d | 40mm |
| D | 80mm |
| B | 30.2mm |
| --- | Abutment Dimensions |
| a | 47.5mm |
| r1r2 min | 1.1mm |
| r1r2 max | 1mm |
| Da min | 47mm |
| da max | 73mm |
| --- | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | 42500 N |
| Basic Static Load Raiting Cor | 32500 N |
| Limiting Speed in Grease | 5600 rpm |
| Limiting Speed in Oil | 7500 rpm |
| Weight | 0.59 kg |
