SKU: 52400D/52638/Y1S-52638-TIM

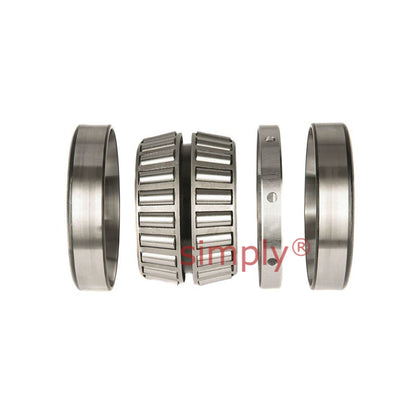

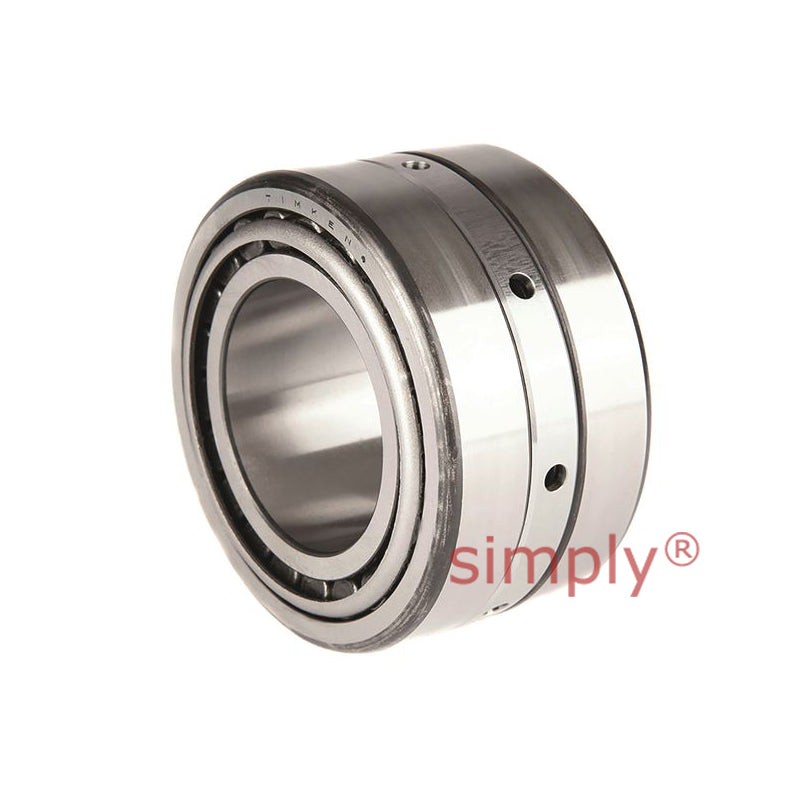

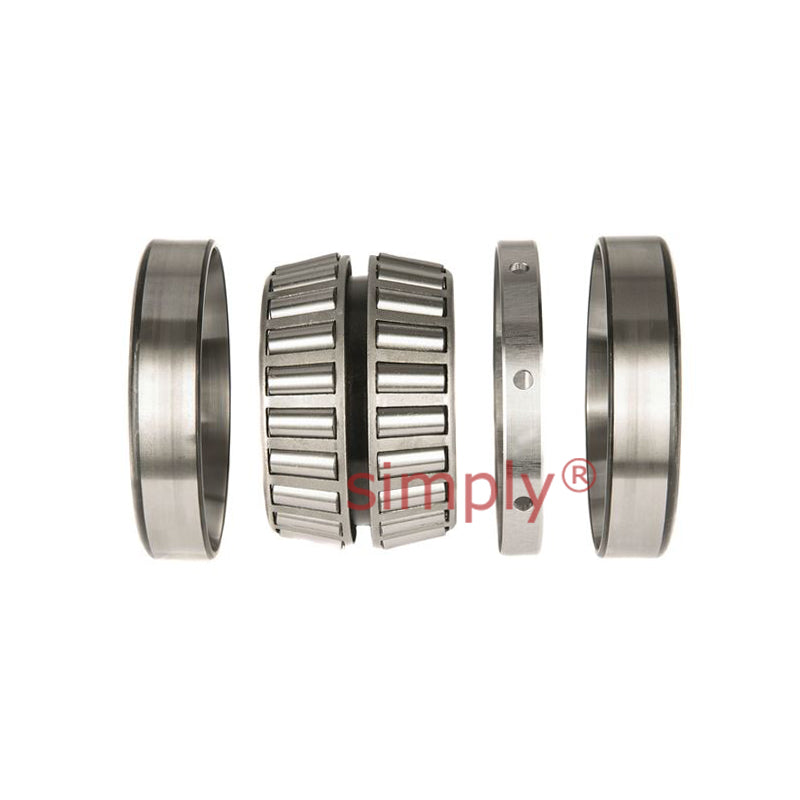

Timken 52400D/52638/Y1S-52638 TDI Double Inner Race Taper Roller Bearing 4x6.375x3.4062x3.125 inch
Timken 52400D/52638/Y1S-52638 TDI Double Inner Race Taper Roller Bearing 4x6.375x3.4062x3.125 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 101.6mm = 4 inch
- Outside Diameter:
- 161.93mm = 6.375 (6-3/8) inch
- Width:
- 86.52mm = 3.406 (3-13/32) inch
Technical
Technical
| d | 101.6mm = 4 inch |
|---|---|
| D | 161.925mm = 6.375 inch |
| T | 86.517mm = 3.4062 inch |
| C | 79.375mm = 3.125 inch |
| Dynamic (1) C1 | 360000N |
| Factors (5) e | 0.47 |
| Factors (5) Y1 | 1.42 |
| Factors (5) Y2 | 2.12 |
| Dynamic (2) C90 | 53600N |
| Dynamic (2) Ca90 | 43600N |
| Dynamic (2) C90(2) | 93400N |
| Factors (5) K | 1.23 |
| Shaft max shaft fillet radius R (3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 112.5mm = 4.43 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 143mm = 5.63 inch |
| G1 | 175 |
| G2 | 41.7 |
| Cg | 0.1519 |
