SKU: 528R/522-SKF

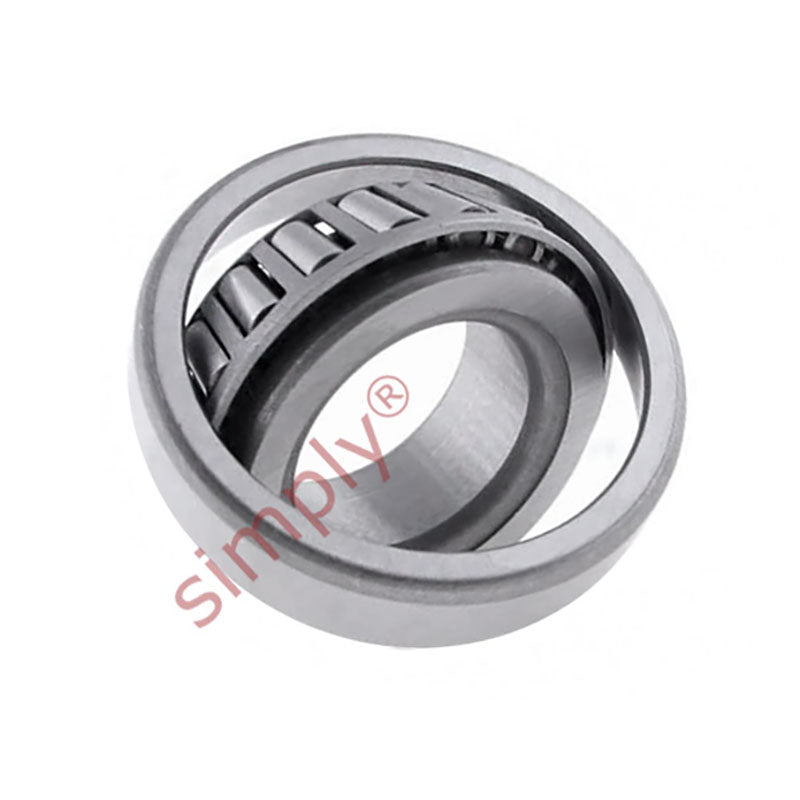

SKF 528R/522 Imperial Taper Roller Bearing 1.875x4x1.375 inches

Name: SKF 528R/522 Imperial Taper Roller Bearing 1.875x4x1.375 inches
Brand: SKF
SKU: 528R/522-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 47.63mm = 1.875 (1-7/8) inch
Outside Diameter:: 101.6mm = 4 inch
Width:: 34.93mm = 1.375 (1-3/8) inch
Seals / Shields:: None

Technical

d	47.625mm
D	101.6mm
T	34.925mm
Dynamic load	151 kN
Static load	190 kN
Fatigue load limit Pu	22.8 kN
Reference speed	5000 rpm
Limiting speed	7500 rpm
Weight	1.25 kg
d1	72.9mm
B	36.068mm
C	26.988mm
r1r2 min	8mm
r3r4 min	3.3mm
a	22mm
da max	54mm
db min	71.5mm
Da min	87mm
Da max	90mm
Db min	94mm
Ca min	6mm
Cb min	7.5mm
ra max	7mm
rb max	3mm
Calculation factor e	0.28
Calculation factor Y	2.1
Calculation factor Y0	1.1
