• KSM 5304 Open Double Row Angular Contact Ball Bearing 20x52x22.2mm
1 1

SKU: 5304-KSM

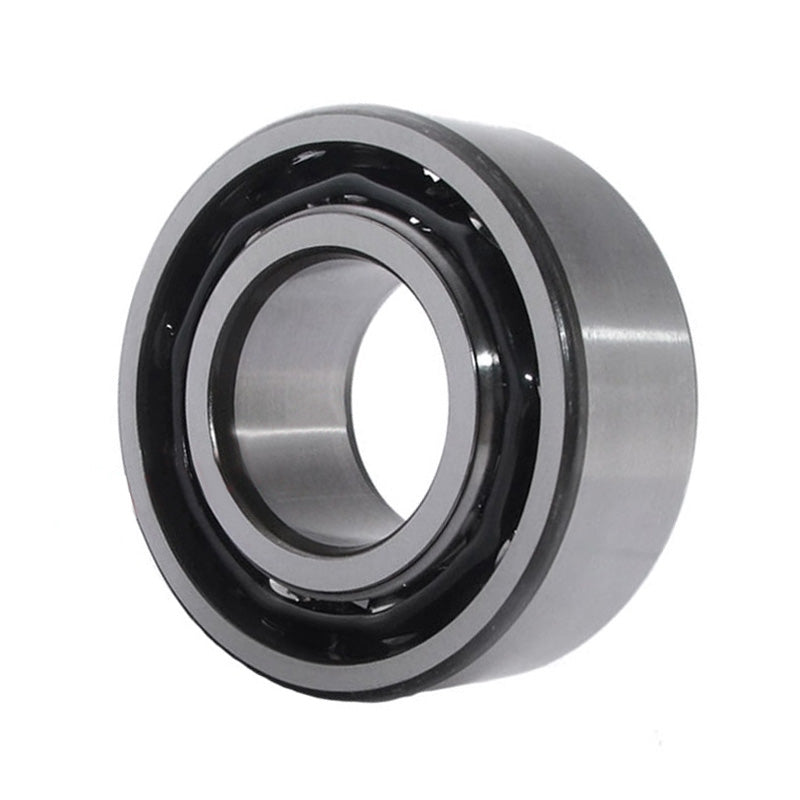

KSM 5304 Open Double Row Angular Contact Ball Bearing 20x52x22.2mm

KSM 5304 Open Double Row Angular Contact Ball Bearing 20x52x22.2mm
€25,09 ex VAT
€25,09 ex VAT
Sale Sold out

Equivalent to: 3304

In stock

Price Break
4+ €19,06
9+ €17,99
19+ €17,78
29+ €17,56
49+ €17,35
99+ €17,14
179+ €16,07
249+ €15,85
499+ €15,64
699+ €15,42
999+ €14,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DRAC1_DESC
Brand / Quality:
KSM - Good Quality
Inside Diameter:
20mm
Outside Diameter:
52mm
Width:
22.2mm
Seals / Shields:
None
Technical
--- Bearing Dimensions
d 20mm
D 52mm
B 22.2mm
--- Abutment Dimensions
a 30.5mm
r1r2 min 1.1mm
r1r2 max 1mm
Da min 27mm
da max 45mm
--- Speeds, Weights and Loads
Basic Load Raiting Dynamic Cr 20600 N
Basic Static Load Raiting Cor 12700 N
Limiting Speed in Grease 8000 rpm
Limiting Speed in Oil 11000 rpm
Weight 0.217 kg
