SKU: 5304-ZZ-KSM

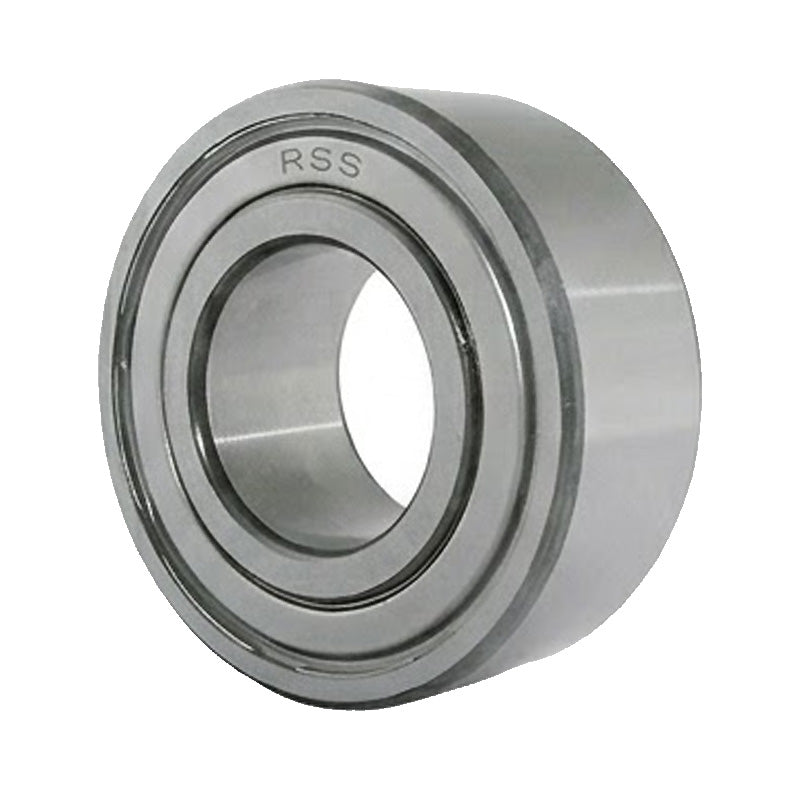

KSM 5304ZZ Metal Shielded Double Row Angular Contact Ball Bearing 20x52x22.2mm

Name: KSM 5304ZZ Metal Shielded Double Row Angular Contact Ball Bearing 20x52x22.2mm
Brand: KSM
SKU: 5304-ZZ-KSM
Price: 32.62 EUR
Availability: InStock

€32,62 ex VAT

Sale Sold out

Equivalent to: 3304ZZ

In stock

Price Break

4+ €24,78

9+ €23,39

19+ €23,11

29+ €22,83

49+ €22,56

99+ €22,28

179+ €20,88

249+ €20,61

499+ €20,33

699+ €20,05

999+ €19,49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Metal Shielded Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

Brand / Quality:: KSM - Good Quality
Inside Diameter:: 20mm
Outside Diameter:: 52mm
Width:: 22.2mm
Seals / Shields:: Metal Shielded

Technical

---	Bearing Dimensions
d	20mm
D	52mm
B	22.2mm
---	Abutment Dimensions
a	30.5mm
r1r2 min	1.1mm
r1r2 max	1mm
Da min	27mm
da max	45mm
---	Speeds, Weights and Loads
Basic Load Raiting Dynamic Cr	20600 N
Basic Static Load Raiting Cor	12700 N
Limiting Speed in Grease	8000 rpm
Limiting Speed in Oil	11000 rpm
Weight	0.217 kg
