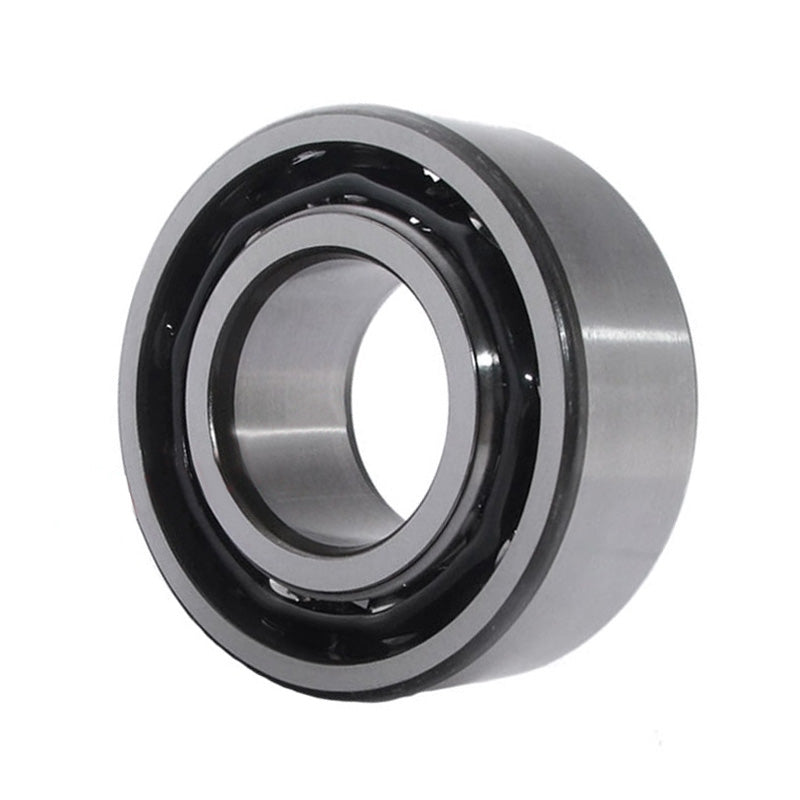

• KSM 5308 Open Double Row Angular Contact Ball Bearing 40x90x36.5mm
1 1

SKU: 5308-KSM

KSM 5308 Open Double Row Angular Contact Ball Bearing 40x90x36.5mm

KSM 5308 Open Double Row Angular Contact Ball Bearing 40x90x36.5mm
€63,22 ex VAT
€63,22 ex VAT
Sale Sold out

Equivalent to: 3308

In stock

Price Break
4+ €48,04
9+ €45,34
19+ €44,80
29+ €44,26
49+ €43,72
99+ €43,18
179+ €40,48
249+ €39,94
499+ €39,40
699+ €38,86
999+ €37,78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DRAC1_DESC
Brand / Quality:
KSM - Good Quality
Inside Diameter:
40mm
Outside Diameter:
90mm
Width:
36.5mm
Seals / Shields:
None
Technical
--- Bearing Dimensions
d 40mm
D 90mm
B 36.5mm
--- Abutment Dimensions
a 53.5mm
r1r2 min 1.5mm
r1r2 max 1.5mm
Da min 48.5mm
da max 81.5mm
--- Speeds, Weights and Loads
Basic Load Raiting Dynamic Cr 60500 N
Basic Static Load Raiting Cor 44000 N
Limiting Speed in Grease 4400 rpm
Limiting Speed in Oil 5900 rpm
Weight 1.01 kg
