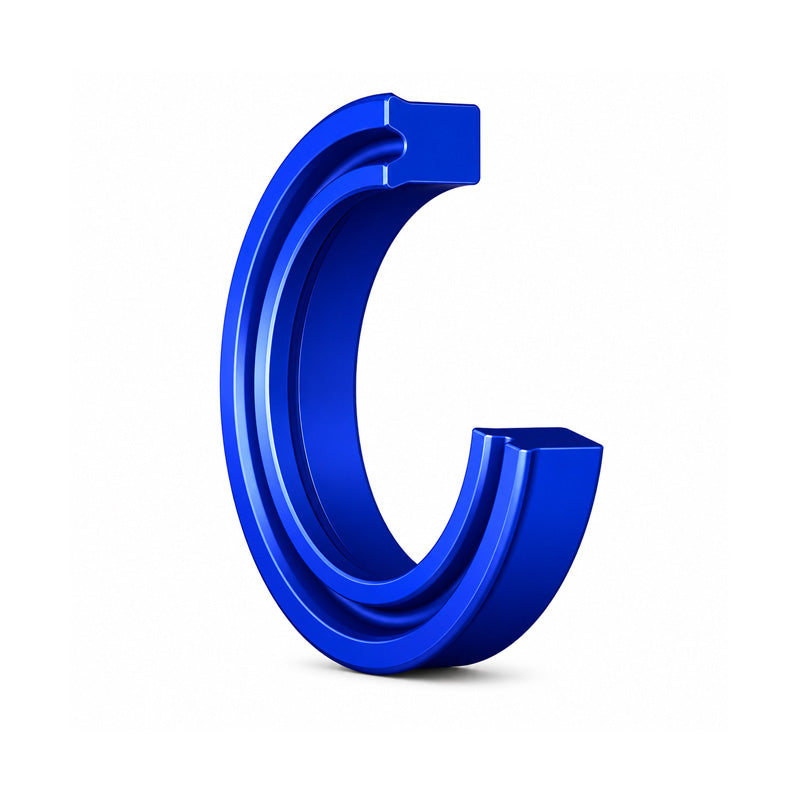

NAK 53x63x6mm UOP Polyurethane Piston Seal - Allow 7-10 Days
NAK 53x63x6mm UOP Polyurethane Piston Seal - Allow 7-10 Days
Regular price
€4,46
ex VAT
Regular price
Sale price
€4,46
ex VAT
In stock
Price Break
10+
€3,39
19+
€3,20
29+
€3,16
39+
€3,12
49+
€3,08
74+
€3,04
99+
€2,85
199+
€2,82
249+
€2,78
499+
€2,74
999+
€2,66
Quantity
Couldn't load pickup availability
Share this product
Description
Description
NAK UOP Piston Seals: The UOP piston seal from NAK is a high-performance, dual-lip polyurethane seal designed for use in dynamic hydraulic applications. Engineered for installation in both single-acting and double-acting cylinders, it delivers outstanding sealing performance, low friction, and long-term fluid retention under a wide range of pressures and operating conditions.
Benefits: Easy installation, stable performance under fluctuating pressures, excellent sealing efficiency
- Brand / Quality:
- NAK - High Quality
- Inside Diameter:
- 53mm
- Outside Diameter:
- 63mm
- Length:
- 6mm
- Material:
- Polyurethane
- Style:
- UOP
- Colour:
- Blue
Technical
Technical
| d | 53mm |
|---|---|
| D | 63mm |
| L | 7mm |
| h | 6mm |
| C | 2.5mm |
| Inside Diameter Tolerance | h10 |
| Outside Diameter Tolerance | H9 |
| Length Tolerance | 0.2mm |
| Pressure (max) | 40 Mpa |
| Sliding Speed (max) | 0.5 m/s |
| Temperature | -40 Deg C to +100 Deg C |
| Colour | Blue |
