SKU: 55x65x6_UIP_NAK
NAK 55x65x6mm UIP Polyurethane Rod Seal - Allow 7-10 Days
- Regular price
- €4.30 ex VAT
- Sale price
- €4,30
- Regular price
-
Not in stock
Quantity Price Breaks
10
€3.83
19
€3.61
29
€3.57
39
€3.53
49
€3.48
74
€3.44
99
€3.23
199
€3.18
249
€3.14
499
€3.10
999
€3.01
SKU:
55x65x6_UIP_NAK
NAK 55x65x6mm UIP Polyurethane Rod Seal - Allow 7-10 Days
- Regular price
- €4.30 ex VAT
- Sale price
- €4,30
- Regular price
-
Description
NAK UIP Rod Seals: The UIP rod seal is a high-performance hydraulic sealing element developed by NAK for demanding rod-end applications. Featuring an asymmetric lip design, it delivers reliable sealing performance while offering enhanced protection against contamination and premature wear.
Benefits: Easy installation, extended operating life, low-friction operation even under high-speed conditions

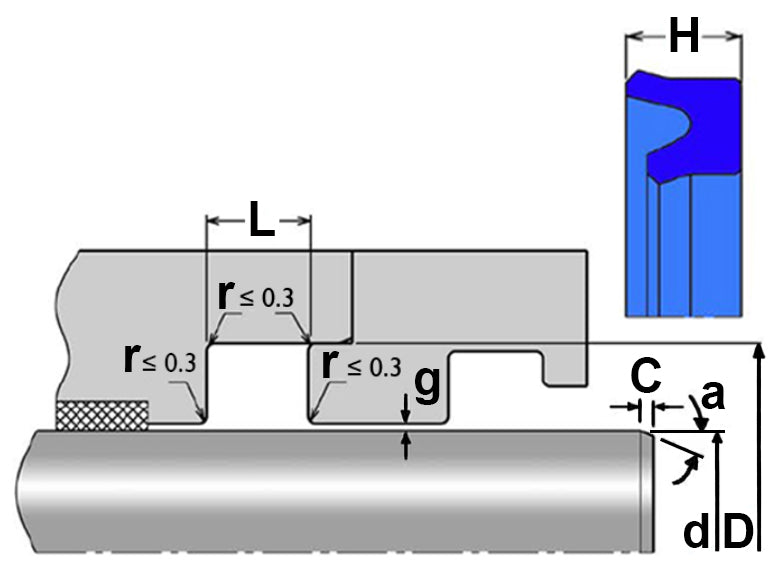

Technical
| d | = | 55mm |
| D | = | 65mm |
| L | = | 7mm |
| h | = | 6mm |
| C | = | 2.5mm |
| Inside Diameter Tolerance | = | f8 |
| Outside Diameter Tolerance | = | H10 |
| Length Tolerance | = | 0.2mm |
| Pressure (max) | = | 40 Mpa |
| Sliding Speed (max) | = | 0.5 m/s |
| Temperature | = | -40 Deg C to +100 Deg C |
| Colour | = | Blue |
