SKU: 566-215

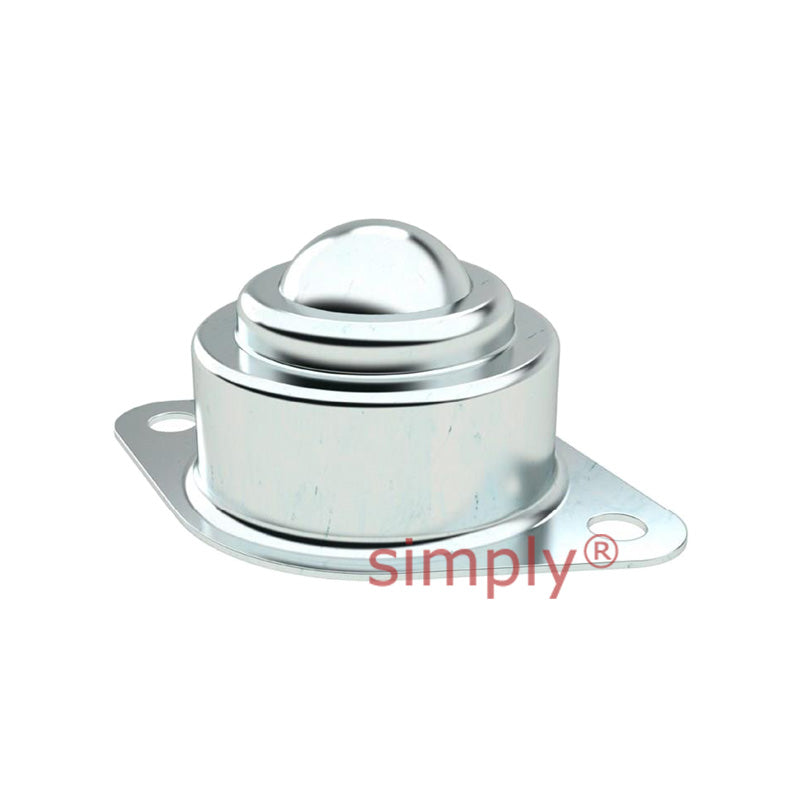

High-Performance 2 Bolt Surface Mount Ball Transfer Unit with 15.88mm Steel Ball - Allow 2-3 Days
- Regular price
- €5.57 ex VAT
- Sale price
- €5,57
- Regular price
-
Quantity Price Breaks
High-Performance 2 Bolt Surface Mount Ball Transfer Unit with 15.88mm Steel Ball - Allow 2-3 Days
- Regular price
- €5.57 ex VAT
- Sale price
- €5,57
- Regular price
-
Description
Surface Fixed Steel Ball Transfer Units: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units consists of a large load-bearing steel ball running on several smaller support balls contained within a zinc-plated carbon steel flanged housing, allowing the large ball to rotate freely. Surface Mount ball transfer units have holes on the flange which allow the user to securely fasten down and secure the ball transfer unit onto a flat surface for greater stability.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.
Technical
| --- | = | Dimensions |
| D | = | 15.88mm |
| H1 | = | 16.7mm |
| L | = | 50mm |
| D1 | = | 28mm |
| H | = | 21mm |
| L1 | = | 40mm |
| H2 | = | 0.6mm |
| D2 | = | 33mm |
| D3 | = | 4mm |
| --- | = | Loads and Speeds |
| Static Load | = | 15 kg |
| Dynamic Load | = | 20 kg |
| Weight | = | 0.04 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Carbon Steel< |
| br> | = | Ball: Steel 9Cr18Mo |
