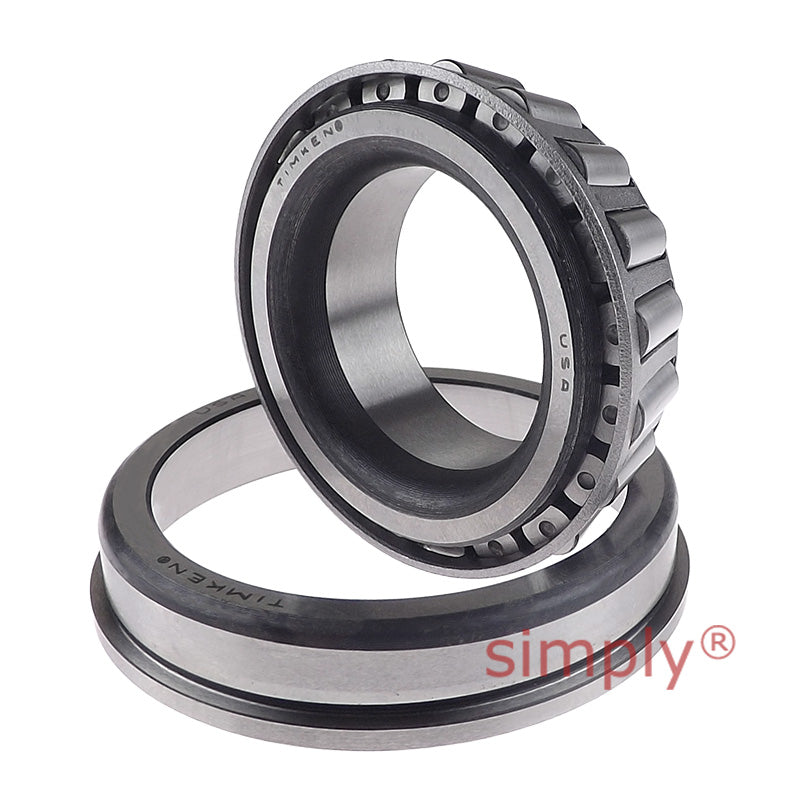

• Timken 567/563B TSF Single-Row Taper Roller Bearing 2.875x5x1.437 inch
1 1

SKU: 567/563B-TIM

Timken 567/563B TSF Single-Row Taper Roller Bearing 2.875x5x1.437 inch

Timken 567/563B TSF Single-Row Taper Roller Bearing 2.875x5x1.437 inch
€271,72 ex VAT
€271,72 ex VAT
Sale Sold out

In stock

Price Break
10+ €206,50
20+ €194,89
30+ €192,57
40+ €190,25
50+ €187,93
75+ €185,61
100+ €174,01
200+ €171,69
250+ €169,37
500+ €167,05
1000+ €162,41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
73.03mm = 2.875 (2-7/8) inch
Outside Diameter:
127mm = 5 inch
Width:
36.51mm = 1.437 (1-7/16) inch
Technical
d 73.025mm = 2.875 inch
D 127mm = 5 inch
T1 14.288mm = 0.5625 inch
Dynamic (1) C1 182000N
Factors (5) e 0.36
Factors (5) Y 1.65
Dynamic (2) C90 47100N
Dynamic (2) Ca90 29400N
Factors (5) K 1.61
Static Co 262000N
Bearing B 36.17mm = 1.424 inch
Bearing C 28.575mm = 1.125 inch
Bearing a(3) -8.1mm = -0.32 inch
Bearing D1 133.248mm = 5.246 inch
Bearing C2 6.35mm = 0.25 inch
Shaft max shaft fillet radius R(4) 3.5mm = 0.14 inch
Shaft backing shoulder diameter da 81mm = 3.19 inch
Shaft backing shoulder diameter db 88mm = 3.46 inch
Housing backing shoulder diameter Da 121mm = 4.76 inch
G1 101
G2 24
Cg 0.1167
