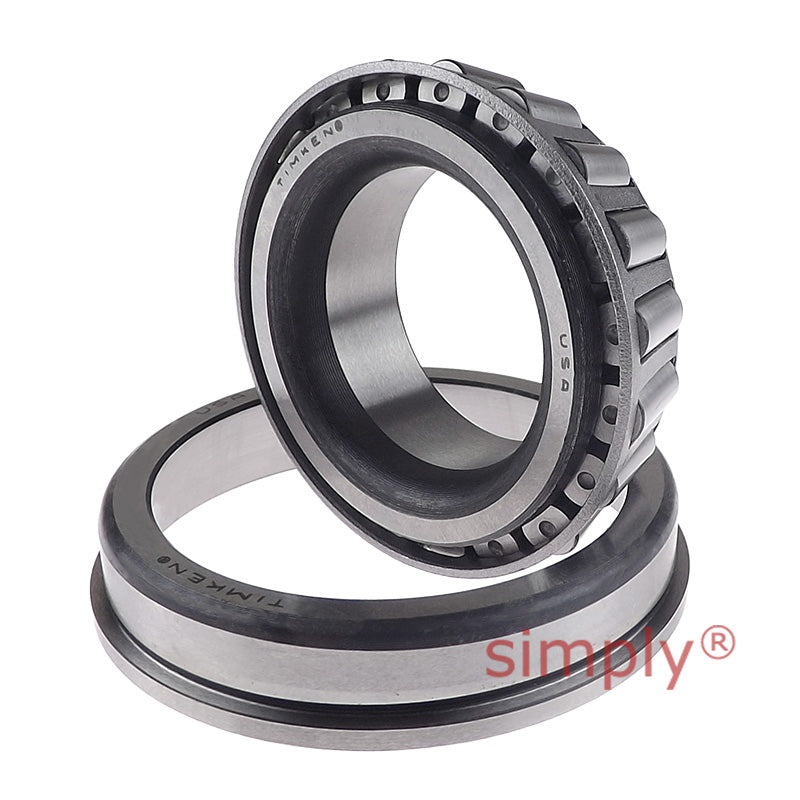

• Timken 569/563B TSF Single-Row Taper Roller Bearing 2.5576x5x1.437 inch
1 1

SKU: 569/563B-TIM

Timken 569/563B TSF Single-Row Taper Roller Bearing 2.5576x5x1.437 inch

Timken 569/563B TSF Single-Row Taper Roller Bearing 2.5576x5x1.437 inch
€386,75 ex VAT
€386,75 ex VAT
Sale Sold out

In stock

Price Break
10+ €293,92
20+ €277,41
30+ €274,10
40+ €270,80
50+ €267,50
75+ €264,20
100+ €247,68
200+ €244,38
250+ €241,08
500+ €237,78
1000+ €231,17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
64.96mm = 2.557 inch
Outside Diameter:
127mm = 5 inch
Width:
36.51mm = 1.437 (1-7/16) inch
Technical
d 64.963mm = 2.5576 inch
D 127mm = 5 inch
T1 14.288mm = 0.5625 inch
Dynamic (1) C1 182000N
Factors (5) e 0.36
Factors (5) Y 1.65
Dynamic (2) C90 47100N
Dynamic (2) Ca90 29400N
Factors (5) K 1.61
Static Co 262000N
Bearing B 36.17mm = 1.424 inch
Bearing C 28.575mm = 1.125 inch
Bearing a(3) -8.1mm = -0.32 inch
Bearing D1 133.248mm = 5.246 inch
Bearing C2 6.35mm = 0.25 inch
Shaft max shaft fillet radius R(4) 3.5mm = 0.14 inch
Shaft backing shoulder diameter da 74mm = 2.91 inch
Shaft backing shoulder diameter db 81mm = 3.19 inch
Housing backing shoulder diameter Da 121mm = 4.76 inch
G1 101
G2 24
Cg 0.1167
