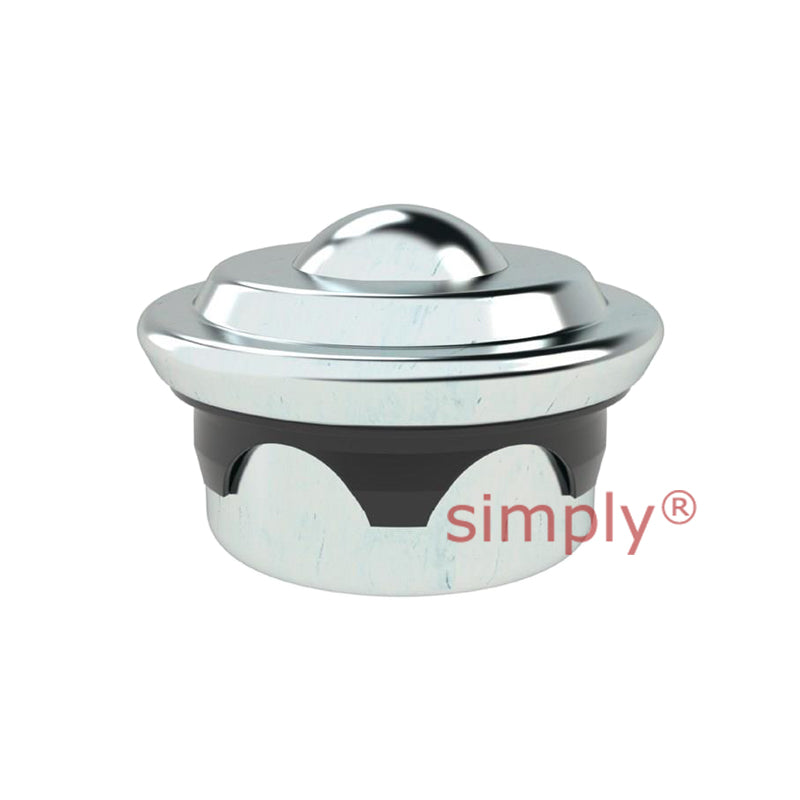

• High-Performance Light Duty Ball Transfer Unit with 22.22mm Stainless Steel Ball - Load Capacity 33.5kg - Allow 2-3 Days
1 1

SKU: 569-622

High-Performance Light Duty Ball Transfer Unit with 22.22mm Stainless Steel Ball - Load Capacity 33.5kg - Allow 2-3 Days

High-Performance Light Duty Ball Transfer Unit with 22.22mm Stainless Steel Ball - Load Capacity 33.5kg - Allow 2-3 Days
€25,09 ex VAT
€25,09 ex VAT
Sale Sold out

In stock

Price Break
4+ €18,69
9+ €17,64
14+ €17,43
19+ €17,22
49+ €17,01
74+ €16,80
99+ €15,75
199+ €15,54
249+ €15,33
499+ €15,12
999+ €14,70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LS8ICNYASC

This ball transfer unit is supplied with a fixing clip. Fixing clips compensates variations in bore and diameter, making them particularly suitable for situations where access to only one side of the mounting surface is possible.

Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
22.22mm
Technical

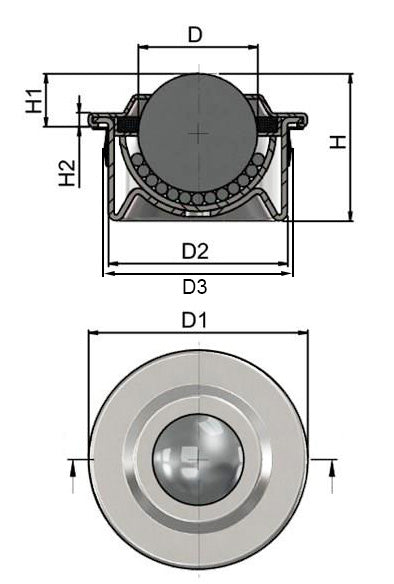

--- Dimensions
D 22.22mm
D1 46mm
D2 36mm
D3 (With Clip) 37/37.5mm
H 30mm
H1 10mm
H2 3mm
--- Loads and Speeds
Load Capacity 33.5 kg
Weight 0.13 kg
--- Materials
Material Body: 304 Stainless Steel<br>Ball: 402 Stainless Steel
