SKU: 570-301A
High-Performance High Capacity 2 Bolt Base Mounted Round Surface Ball Transfer Unit with 12.7mm Stainless Steel Ball - Load Capacity 35kg - Allow 2-3 Days
- Regular price
- €47.96 ex VAT
- Sale price
- €47,96
- Regular price
-
Quantity Price Breaks
High-Performance High Capacity 2 Bolt Base Mounted Round Surface Ball Transfer Unit with 12.7mm Stainless Steel Ball - Load Capacity 35kg - Allow 2-3 Days
- Regular price
- €47.96 ex VAT
- Sale price
- €47,96
- Regular price
-
Description

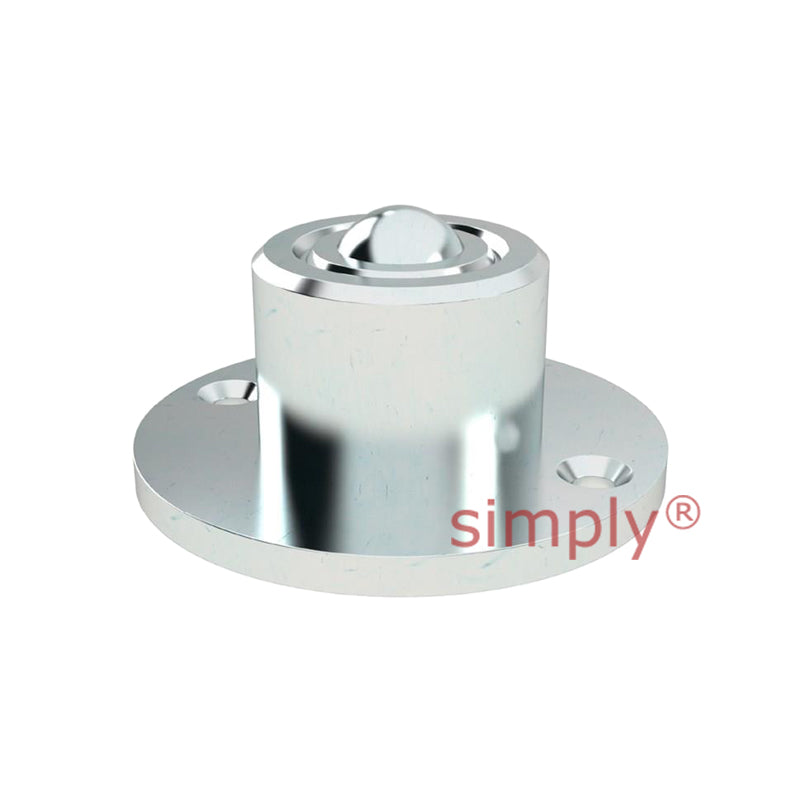

Surface Fixed Base Mount Stainless Steel Ball Transfer Units: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units consists of a large load-bearing stainless steel ball running on several smaller support balls contained within a zinc-plated mild steel flanged housing, allowing the large ball to rotate freely. Base mount ball transfer units are equipped with flange-mounted holes that enable users to securely anchor the unit onto the base of a flat surface, enhancing stability.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Corrosion-resistant stainless steel. Easy assembly, reducing downtime.
Technical

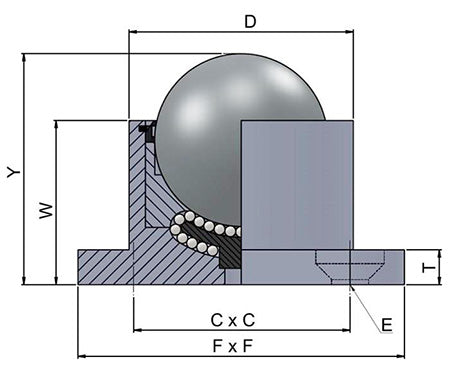

| --- | = | Dimensions |
| Ball Diameter | = | 12.7mm |
| Y | = | 22.3mm |
| W | = | 19.1mm |
| D | = | 23.8mm |
| FXF | = | 44.5mm |
| CXC | = | 34.8mm |
| T | = | 3.2mm |
| E | = | 2x3.6mm |
| --- | = | Loads and Speeds |
| Load Capacity | = | 35 kg |
| Load capacity | = | 75 lbs |
| Weight | = | 0.08 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Mild Steel< |
| br> | = | Ball: 420 Stainless Steel |
