SKU: 570-303A

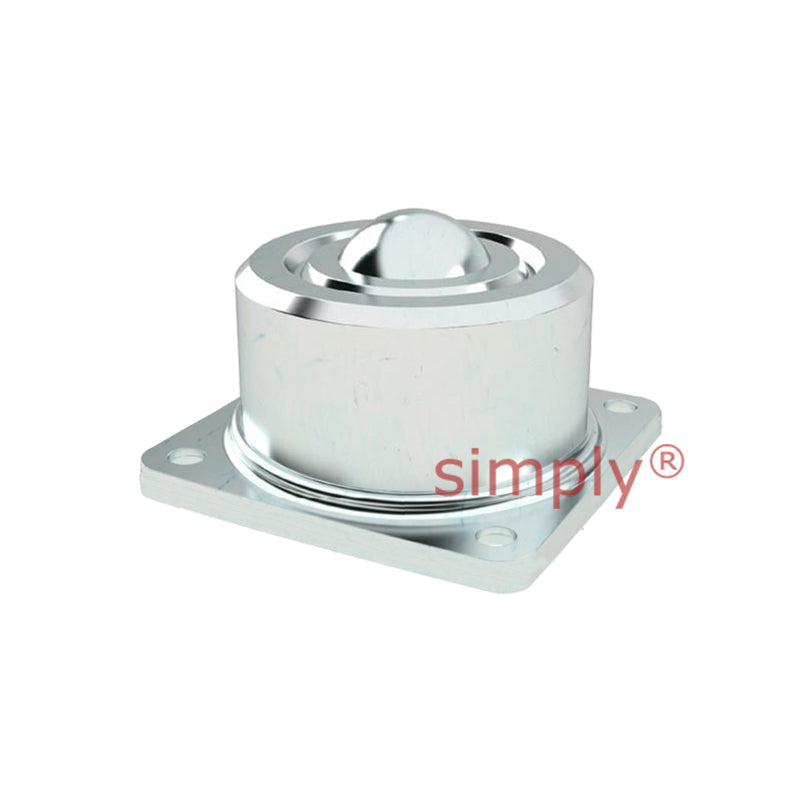

High-Performance High Capacity 4 Bolt Base Mounted Square Surface Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 320kg - Allow 2-3 Days
- Regular price
- €105.36 ex VAT
- Sale price
- €105,36
- Regular price
-
Quantity Price Breaks
High-Performance High Capacity 4 Bolt Base Mounted Square Surface Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 320kg - Allow 2-3 Days
- Regular price
- €105.36 ex VAT
- Sale price
- €105,36
- Regular price
-
Description
Surface Fixed Base Mount Stainless Steel Ball Transfer Units: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units consists of a large load-bearing stainless steel ball running on several smaller support balls contained within a zinc-plated mild steel flanged housing, allowing the large ball to rotate freely. Base mount ball transfer units are equipped with flange-mounted holes that enable users to securely anchor the unit onto the base of a flat surface, enhancing stability.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Corrosion-resistant stainless steel. Easy assembly, reducing downtime.
Technical
| --- | = | Dimensions |
| Ball Diameter | = | 25.4mm |
| Y | = | 44.5mm |
| W | = | 38.1mm |
| D | = | 50.8mm |
| FXF | = | 76.2mm |
| CXC | = | 57.9mm |
| T | = | 6.3mm |
| E | = | 4x7.1mm |
| --- | = | Loads and Speeds |
| Load Capacity | = | 320 kg |
| Load capacity | = | 700 lbs |
| Weight | = | 0.7 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Mild Steel< |
| br> | = | Ball: 420 Stainless Steel |
