SKU: 570-405

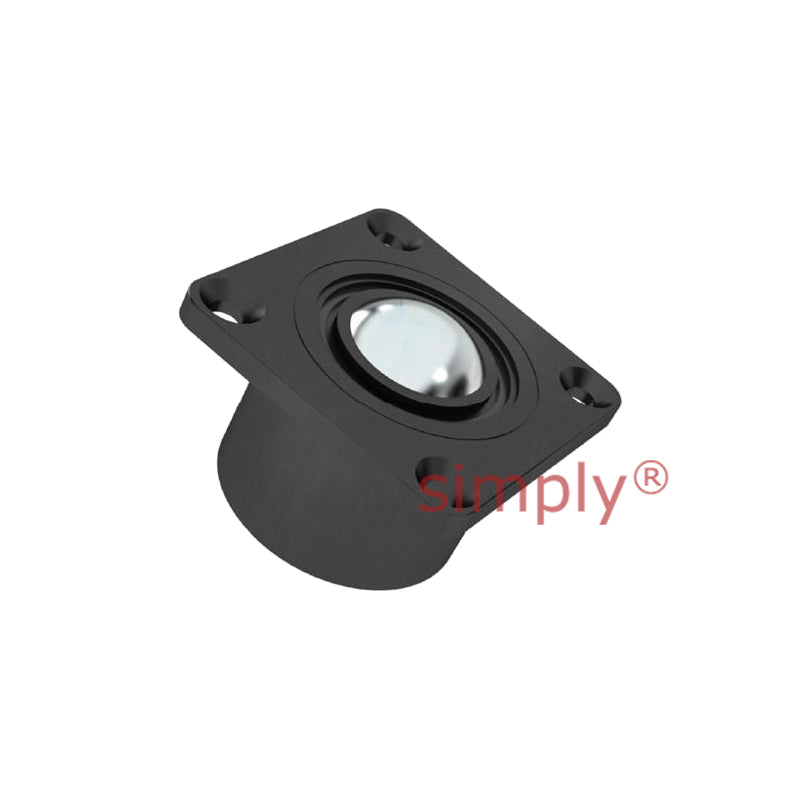

High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 2036kg - Allow 2-3 Days
- Regular price
- €428.96 ex VAT
- Sale price
- €428,96
- Regular price
-
Quantity Price Breaks
High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 2036kg - Allow 2-3 Days
- Regular price
- €428.96 ex VAT
- Sale price
- €428,96
- Regular price
-
Description
Surface Fixed Top Mount Steel Ball Transfer Units: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units consists of a large load-bearing steel ball running on several smaller support balls contained within a zinc-plated mild steel flanged housing, allowing the large ball to rotate freely. Top mount ball transfer units feature flange-mounted holes that enable users to securely attach them to a flat surface in a top position, ensuring enhanced stability.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.
Technical
| --- | = | Dimensions |
| Ball Diameter | = | 50.8mm |
| Y mm | = | 98.4mm |
| W mm | = | 84.2mm |
| D mm | = | 110mm |
| FXF mm | = | 127mm |
| CXC mm | = | 101.6mm |
| T mm | = | 19.1mm |
| E(Dia) mm | = | 4x10.3mm |
| --- | = | Loads and Speeds |
| Load Capacity | = | 2036 kg |
| Load capacity Ibs | = | 4488 lbs |
| Weight | = | 6.32 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Mild Steel< |
| br> | = | Ball: Steel 9Cr18Mo |
| Mounting Type | = | Square |
