• High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 91kg - Allow 2-3 Days
1 1

SKU: 570-508A

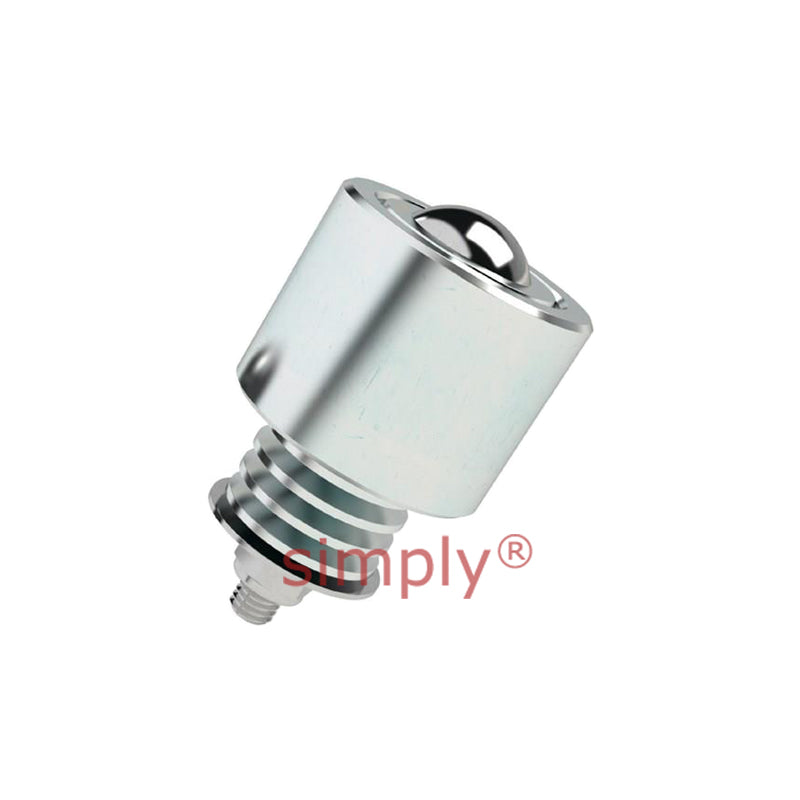

High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 91kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 91kg - Allow 2-3 Days
€135,46 ex VAT
€135,46 ex VAT
Sale Sold out

In stock

Price Break
4+ €100,93
9+ €95,26
14+ €94,12
19+ €92,99
49+ €91,85
74+ €90,72
99+ €85,05
199+ €83,92
249+ €82,78
499+ €81,65
999+ €79,38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
YO6RLGFF6Y
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
25.4mm
Technical
--- Dimensions
Ball Diameter 25.4mm
D 50.8mm
R 38.1mm
X 80.8mm
Y 98.4mm
Z 19.2mm
Max Deflection 3.2mm
--- Loads and Speeds
Supports Load 91kg
Load to Max Deflection 209kg
Weight 0.78 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: 420 Stainless Steel
