• High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 227kg - Allow 2-3 Days
1 1

SKU: 570-511

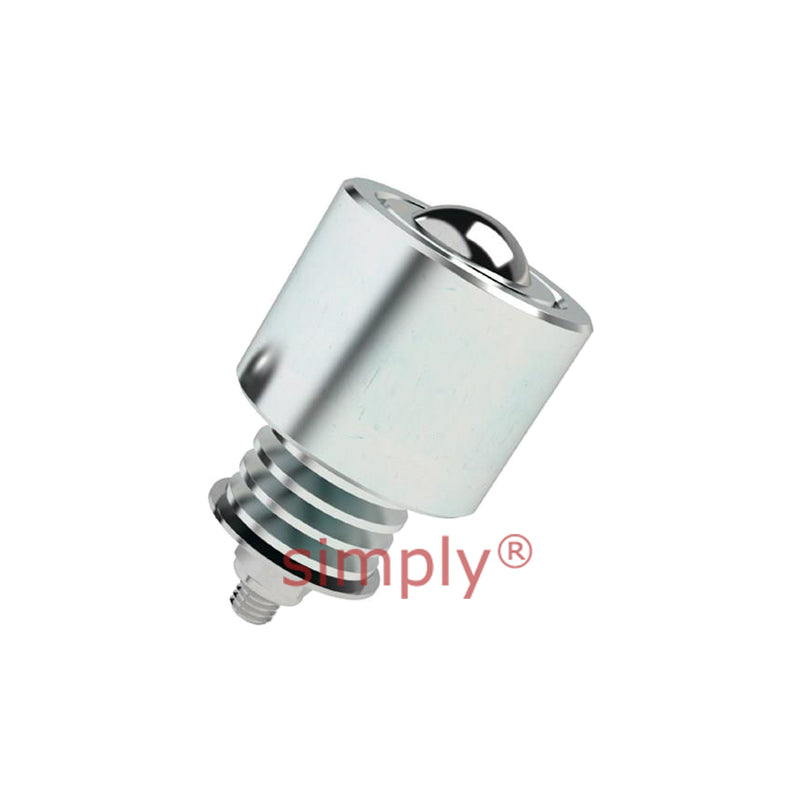

High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 227kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 227kg - Allow 2-3 Days
€126,06 ex VAT
€126,06 ex VAT
Sale Sold out

In stock

Price Break
4+ €93,92
9+ €88,64
14+ €87,59
19+ €86,53
49+ €85,48
74+ €84,42
99+ €79,14
199+ €78,09
249+ €77,03
499+ €75,98
999+ €73,87

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MVV64HPJSS
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
25.4mm
Technical

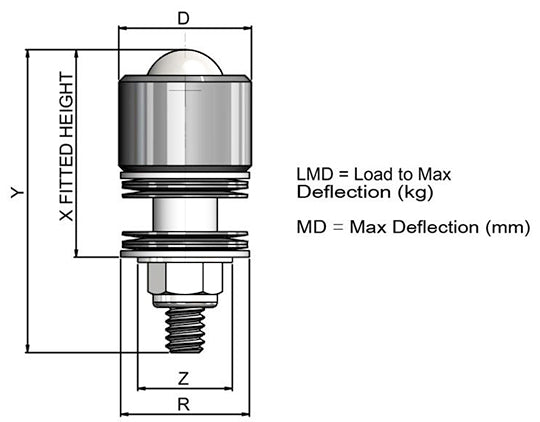

--- Dimensions
Ball Diameter 25.4mm
D 50.8mm
R 38.1mm
X 80.9mm
Y 98.4mm
Z 19.2mm
Max Deflection 3.2mm
--- Loads and Speeds
Supports Load 227kg
Load to Max Deflection 308kg
Weight 0.82 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo
