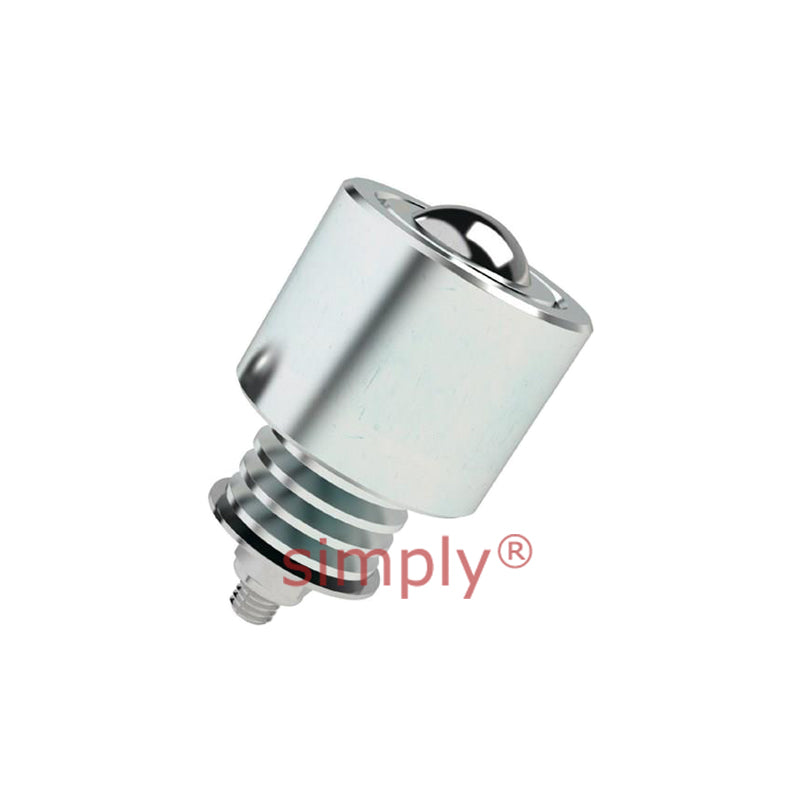

• High Capacity External Spring Loaded Ball Transfer Unit with 38.1mm Stainless Steel Ball - Load Capacity 227kg - Allow 2-3 Days
1 1

SKU: 570-512A

High Capacity External Spring Loaded Ball Transfer Unit with 38.1mm Stainless Steel Ball - Load Capacity 227kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 38.1mm Stainless Steel Ball - Load Capacity 227kg - Allow 2-3 Days
€292,82 ex VAT
€292,82 ex VAT
Sale Sold out

In stock

Price Break
4+ €218,16
9+ €205,90
14+ €203,45
19+ €201,00
49+ €198,55
74+ €196,10
99+ €183,84
199+ €181,39
249+ €178,94
499+ €176,49
999+ €171,59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
YO6RLGFF6Y
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
38.1mm
Technical
--- Dimensions
Ball Diameter 38.1mm
D 60.3mm
R 59.4mm
X 115.5mm
Y 161.1mm
Z 35.6mm
Max Deflection 5.6mm
--- Loads and Speeds
Supports Load 227kg
Load to Max Deflection 658kg
Weight 0.86 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: 420 Stainless Steel
