• High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Stainless Steel Ball - Load Capacity 1000kg - Allow 2-3 Days
1 1

SKU: 570-519A

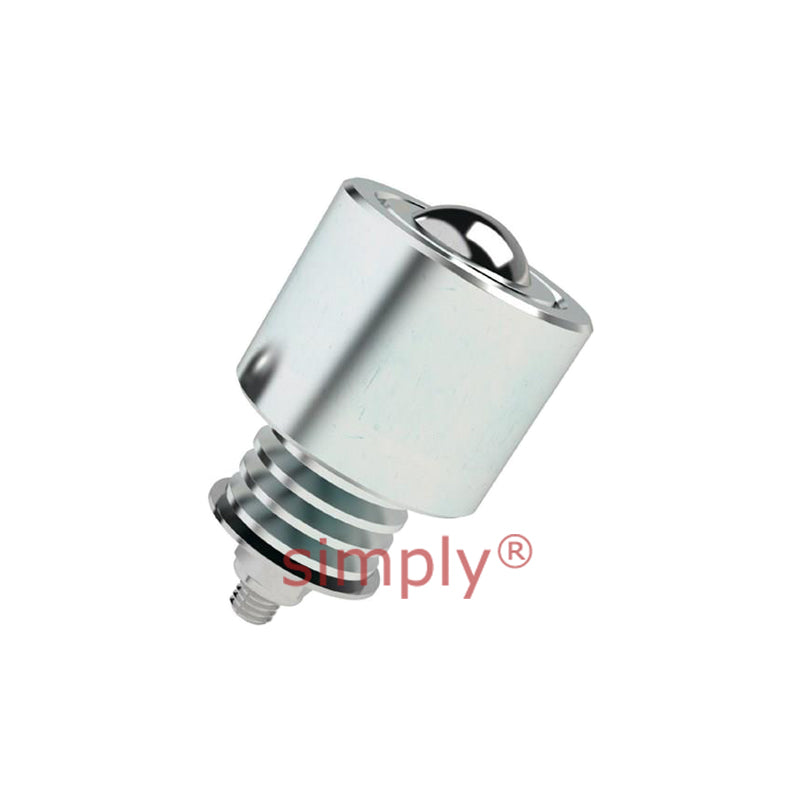

High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Stainless Steel Ball - Load Capacity 1000kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Stainless Steel Ball - Load Capacity 1000kg - Allow 2-3 Days
€848,14 ex VAT
€848,14 ex VAT
Sale Sold out

In stock

Price Break
4+ €631,91
9+ €596,41
14+ €589,31
19+ €582,21
49+ €575,11
74+ €568,01
99+ €532,51
199+ €525,41
249+ €518,31
499+ €511,21
999+ €497,01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
YO6RLGFF6Y
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
50.8mm
Technical
--- Dimensions
Ball Diameter 50.8mm
D 101.6mm
R 101.6mm
X 177.4mm
Y 200.8mm
Z 43.2mm
Max Deflection 6.3mm
--- Loads and Speeds
Supports Load 1000kg
Load to Max Deflection 1597kg
Weight 8.9 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: 420 Stainless Steel
