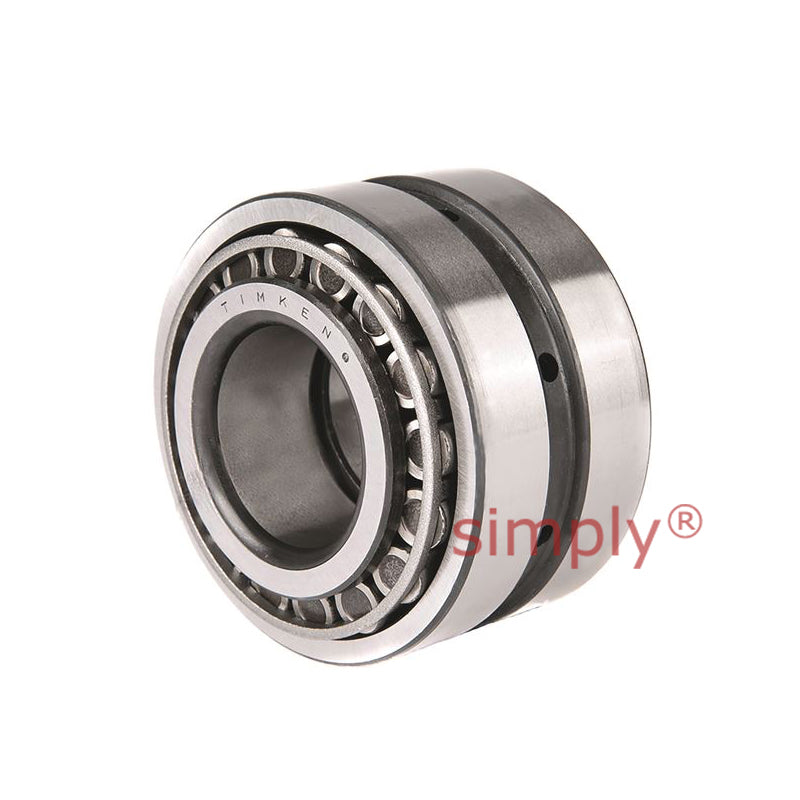

Timken 570/563D/X1S570 TDO Double Outer Race Taper Roller Bearing 2.6875x5x3.1875x2.5625 inch
Timken 570/563D/X1S570 TDO Double Outer Race Taper Roller Bearing 2.6875x5x3.1875x2.5625 inch
Out of stock
Description
Description

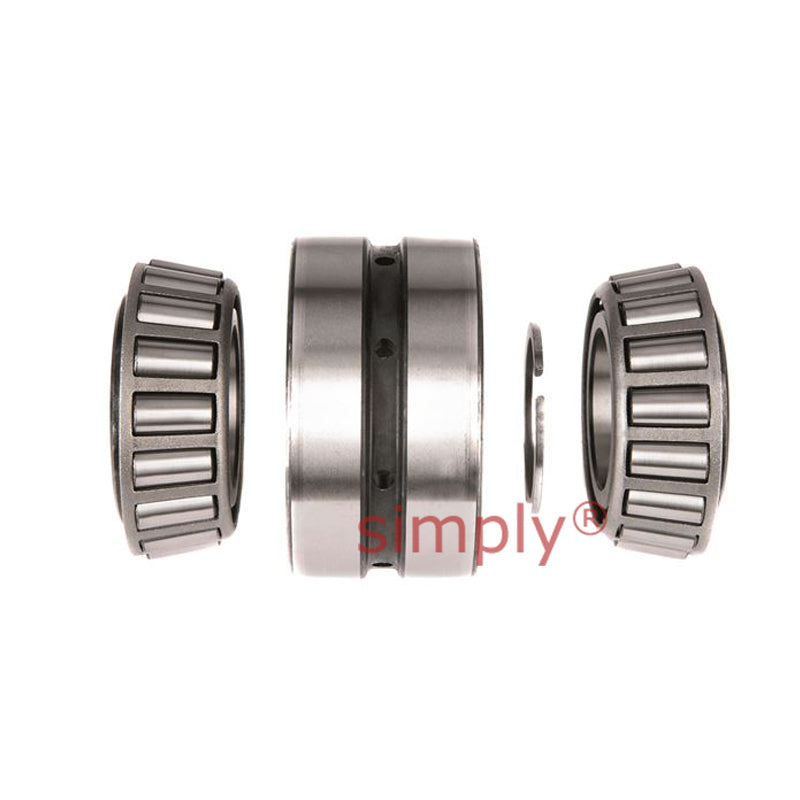

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 68.26mm = 2.6875 inch
- Outside Diameter:
- 127.00mm = 5 inch
- Width:
- 80.96mm = 3.1875 inch
Technical
Technical
| d | 68.262mm = 2.6875 inch |
|---|---|
| D | 127mm = 5 inch |
| T | 80.962mm = 3.1875 inch |
| C | 65.088mm = 2.5625 inch |
| Dynamic (1) C1 | 317000N |
| Factors (5) e | 0.36 |
| Factors (5) Y1 | 1.86 |
| Factors (5) Y2 | 2.76 |
| Dynamic (2) C90 | 47100N |
| Dynamic (2) Ca90 | 29400N |
| Dynamic (2) C90(2) | 82100N |
| Factors (5) K | 1.61 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 83mm = 3.27 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 119mm = 4.69 inch |
| G1 | 101 |
| G2 | 24 |
| Cg | 0.1167 |
