SKU: 60-3-SYN-NO30-RENOLD
Renold Synergy 60-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 3/4 inch Pitch
- Regular price
- €80.07 ex VAT
- Sale price
- €80,07
- Regular price
-
Not in stock
Quantity Price Breaks
2
€71.26
5
€67.26
10
€66.46
29
€65.66
49
€64.86
75
€64.06
100
€60.05
200
€59.25
250
€58.45
500
€57.65
1000
€56.05
SKU:
60-3-SYN-NO30-RENOLD
Renold Synergy 60-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 3/4 inch Pitch
- Regular price
- €80.07 ex VAT
- Sale price
- €80,07
- Regular price
-
Description

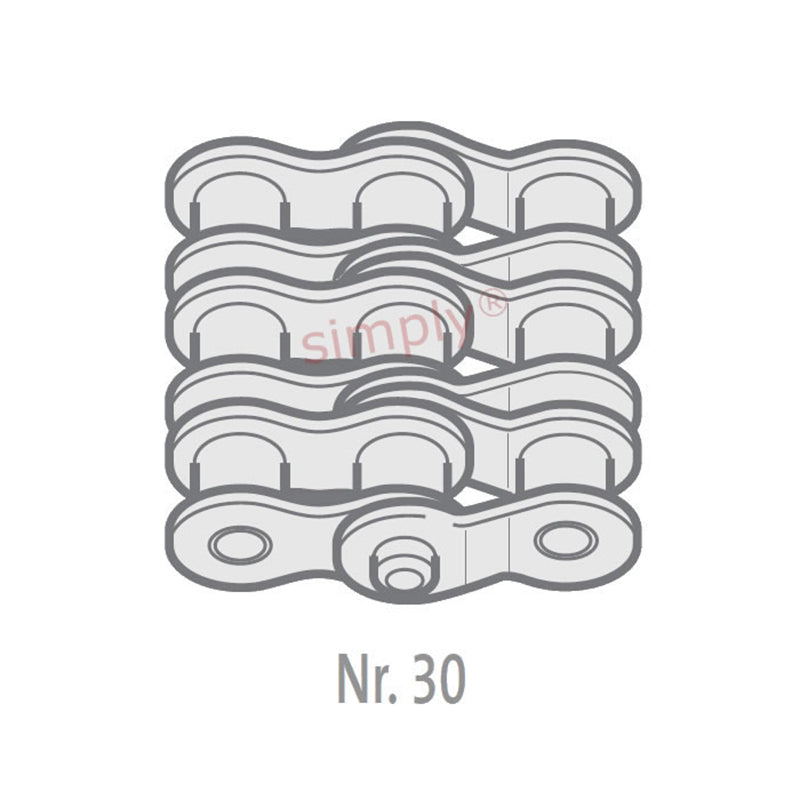

| Renold No. 30 ANSI Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 12.57mm |
| Roller Diameter max (C) | = | 11.91mm |
| Plate Height max (D) | = | 17.5mm |
| Plate Width Inner max (E) | = | 2.45mm |
| Plate Width Outer max (F) | = | 2.45mm |
| Pin Diameter max (G) | = | 5.94mm |
| Pin Length max (H2) | = | 70.9mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| Transverse Pitch nom (K) | = | 22.78mm |
| ISO606 Tensile Strength min | = | 93900 N |
| Weight | = | 0.01kg/m |
