SKU: 6000-2RS-CDX

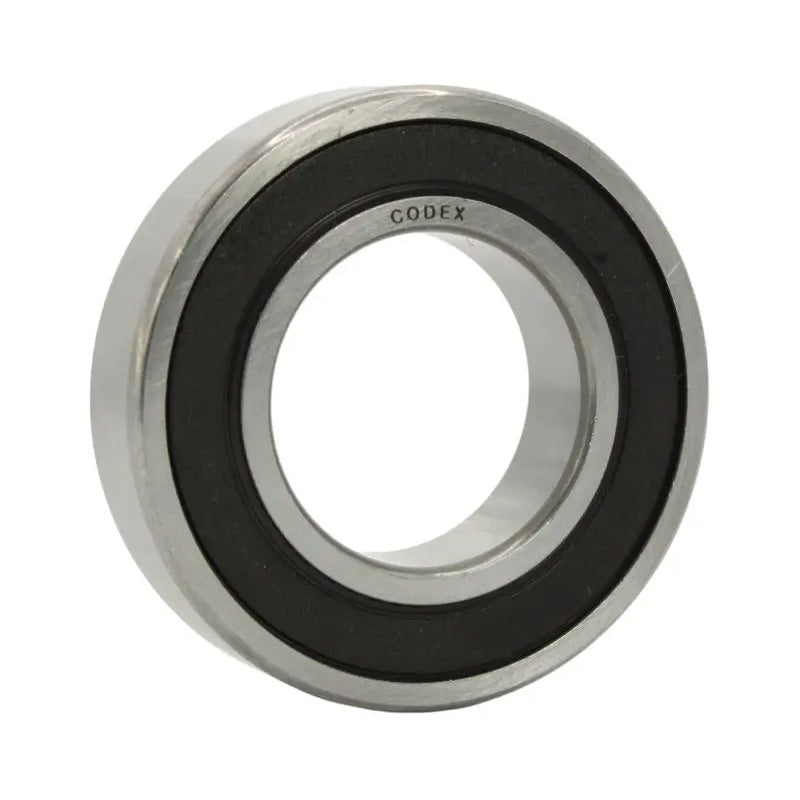

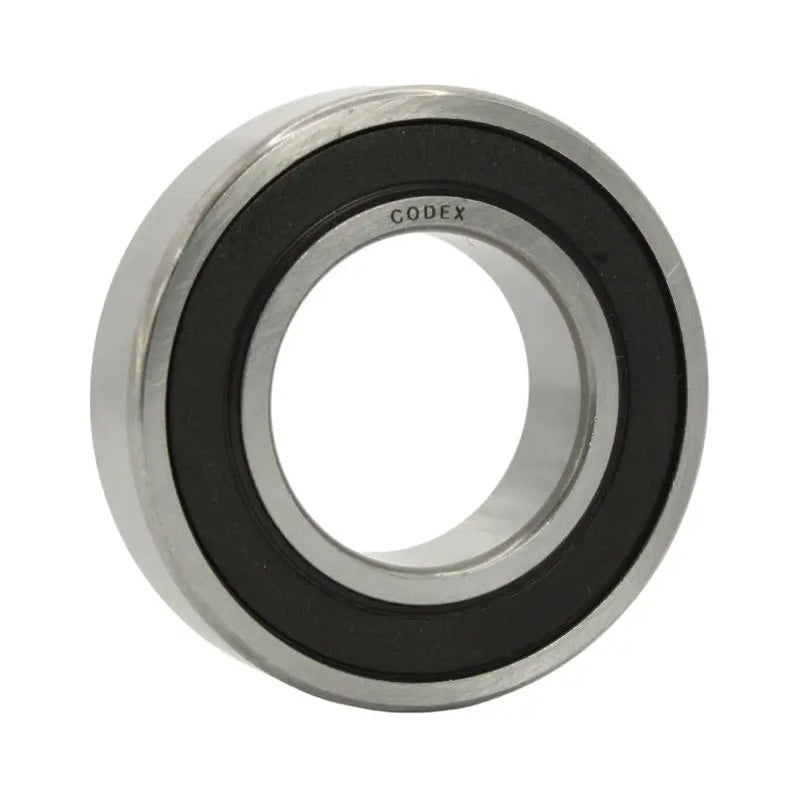

Codex 60002RS Rubber Sealed Deep Groove Ball Bearing 10x26x8mm
Codex 60002RS Rubber Sealed Deep Groove Ball Bearing 10x26x8mm
Regular price
€4,42
ex VAT
Regular price
Sale price
€4,42
ex VAT
Equivalent to: 60002RS 60002RSH 60002RS1 60002RSR 60002RSL 6000LFS 6000EE 6000DU 6000LLU EL102RS 6000PP 9100PP 100KSZZ 993L00 6100KK 10L10
In stock
Price Break
4+
€3,36
10+
€3,17
20+
€3,13
30+
€3,09
50+
€3,06
75+
€3,02
100+
€2,83
200+
€2,79
250+
€2,76
500+
€2,72
1000+
€2,64
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 26mm
- Width:
- 8mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 10mm |
|---|---|
| D | 26mm |
| B | 8mm |
| Dynamic load C | 4.75 kN |
| Static load Co | 1.96 kN |
| Fatigue load limit Pu | 0.083 |
| Reference speed | 67000 rpm |
| Limiting speed | 19000 rpm |
| Weight | 0.019 kg |
| d1 | 14.8mm |
| D2 | 22.6mm |
| r1r2 | 0.3mm |
| da min | 12mm |
| Da max | 24mm |
| ra max | 0.3mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 12 |
