SKU: 6000-NACHI

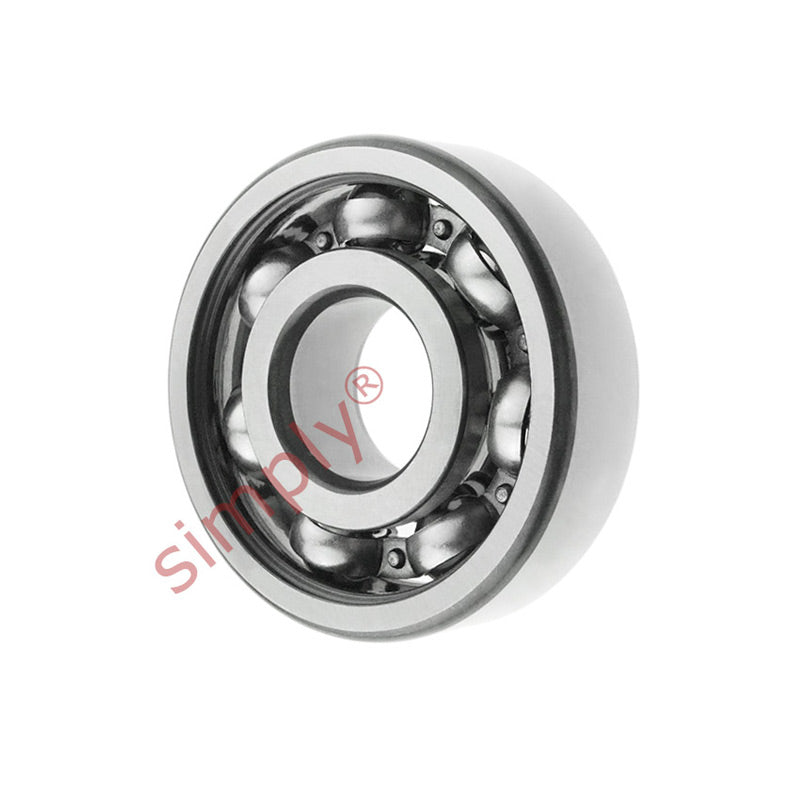

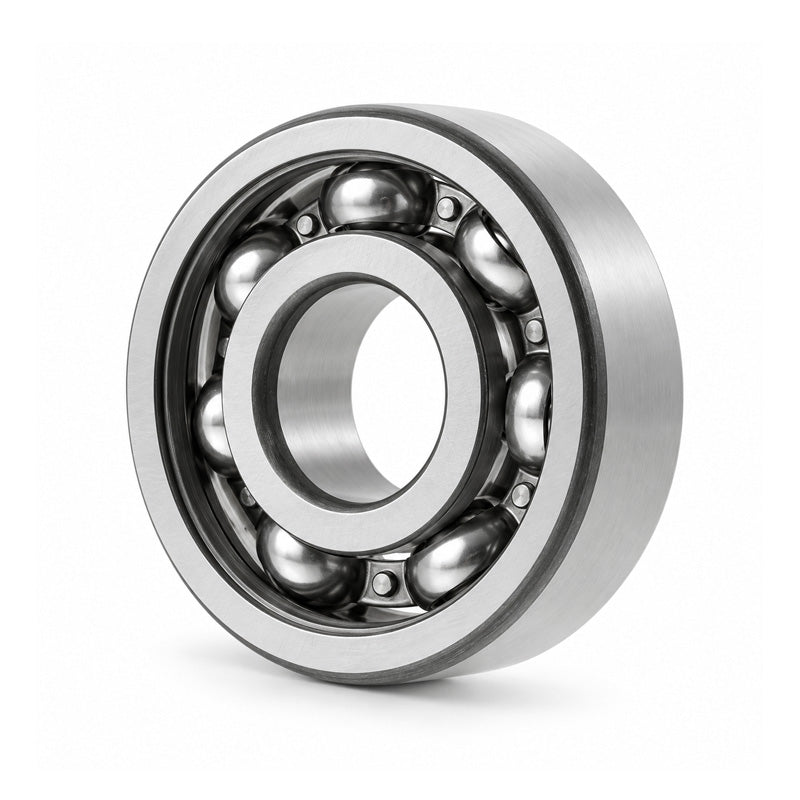

NACHI 6000 Open Deep Groove Ball Bearing 10x26x8mm
NACHI 6000 Open Deep Groove Ball Bearing 10x26x8mm
Regular price
€4,20
ex VAT
Regular price
Sale price
€4,20
ex VAT
In stock
Price Break
5+
€3,20
9+
€3,02
19+
€2,98
29+
€2,95
49+
€2,91
74+
€2,88
99+
€2,70
199+
€2,66
249+
€2,62
499+
€2,59
999+
€2,52
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 26mm
- Width:
- 8mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 10mm |
|---|---|
| Outside Diameter D | 26mm |
| Width B | 8mm |
| Min radius r | 0.3mm |
| Dynamic load | 4550 kN |
| Static load | 1970 kN |
| Max speed in oil | 36000 rpm |
| Max speed in grease | 30000 rpm |
| da min | 12mm |
| Da max | 24mm |
| ra max | 0.3mm |
| Weight | 0.019 kg |
