SKU: 6000LLU/5K-NTN

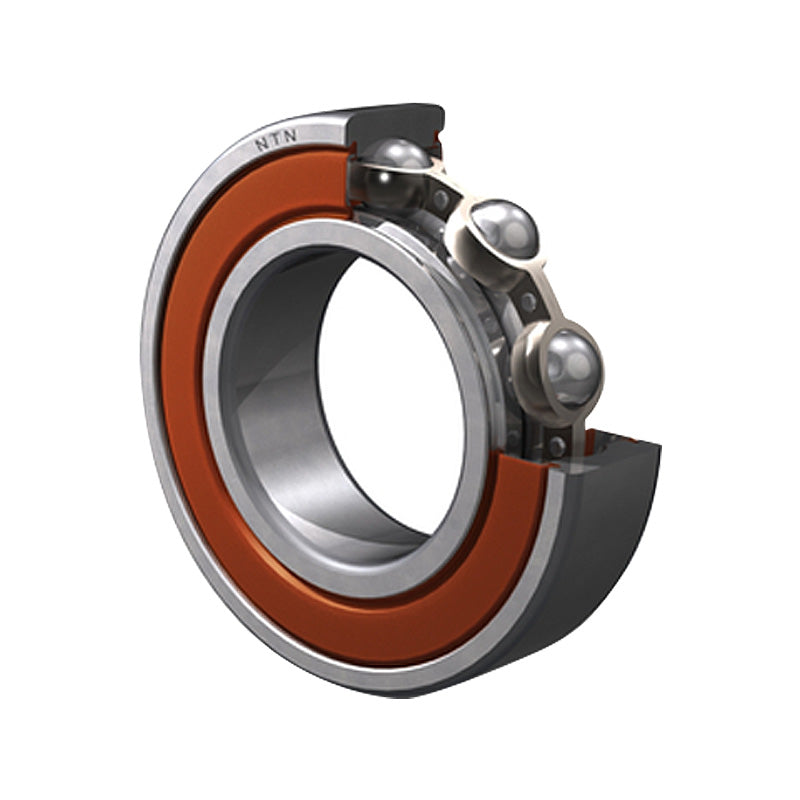

NTN 6000LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 10x26x8mm
Equivalent to: 6000LLUCM 6000NSE 6000DU 6000RS 6000RSH 6000P 6000RSR 6000LU 60002NSE 6000DDU 60002RS 6000-2RS 60002RS1 60002RSH 6000PP 60002RSR 6000LLU 6000RS2 60002RS2 60002RSL 6000LFS 6000EE EL102RS 9100PP 100KSZZ 993L00 6100KK 10L10
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 26mm
- Width:
- 8mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 10mm |
| D | 26mm |
| B | 8mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 5.05 kN |
| C<sub>or</sub> | 1.96 kN |
| C<sub>u</sub> | 0.138 kN |
| f<sub>0</sub> | 12.4 kN |
| Speed | 21000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 12mm |
| d<sub>a</sub> Max. | 13.5mm |
| D<sub>a</sub> Max. | 24mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight Kg | 0.019 kg |
