SKU: 6001JRXLLU/5K-NTN

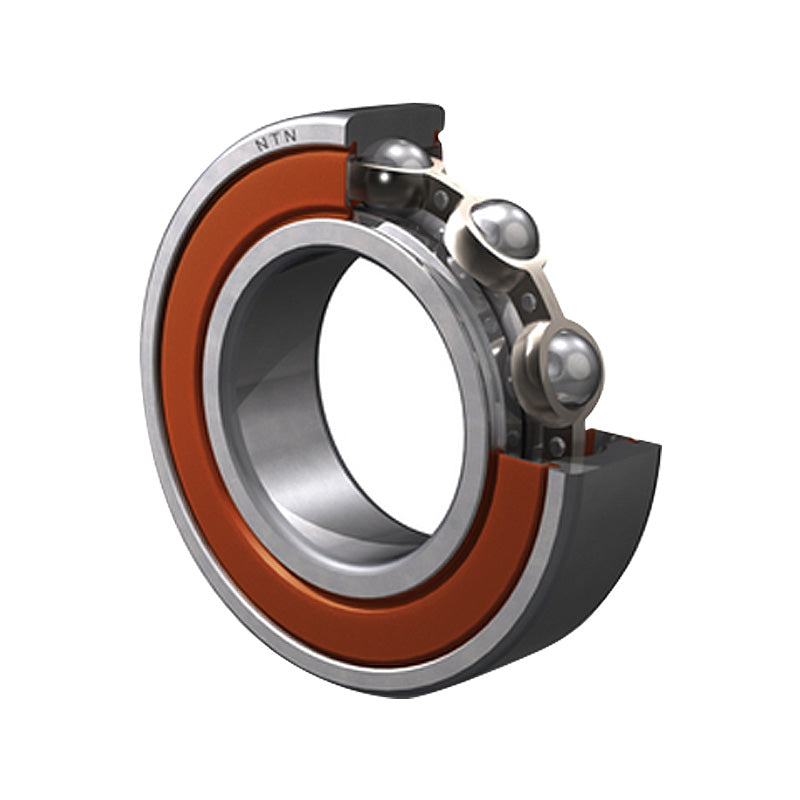

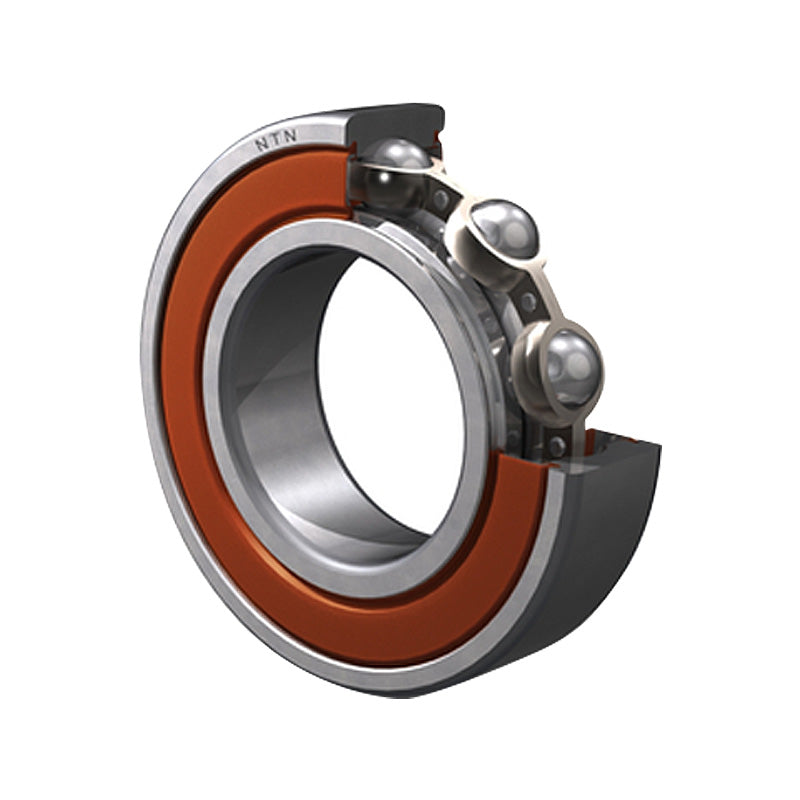

NTN 6001JRXLLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 12x28x8mm
Equivalent to: 6001JRXLLUCM 6001NSE 6001DU 6001RS 6001RSH 6001P 6001RSR 6001LU 60012NSE 6001DDU 60012RS 6001-2RS 60012RS1 60012RSH 6001PP 60012RSR 6001LLU 6001RS2 60012RS2 60012RSL 6001LFS 6001EE EL122RS 9101PP 101KSZZ 993L01 6101KK 10L12
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 8mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 12mm |
| D | 28mm |
| B | 8mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 5.65 kN |
| C<sub>or</sub> | 2.39 kN |
| C<sub>u</sub> | 0.182 kN |
| f<sub>0</sub> | 13.2 kN |
| Speed | 18000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 14mm |
| d<sub>a</sub> Max. | 16mm |
| D<sub>a</sub> Max. | 26mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight Kg | 0.021 kg |
