SKU: 6003/C3-FAG

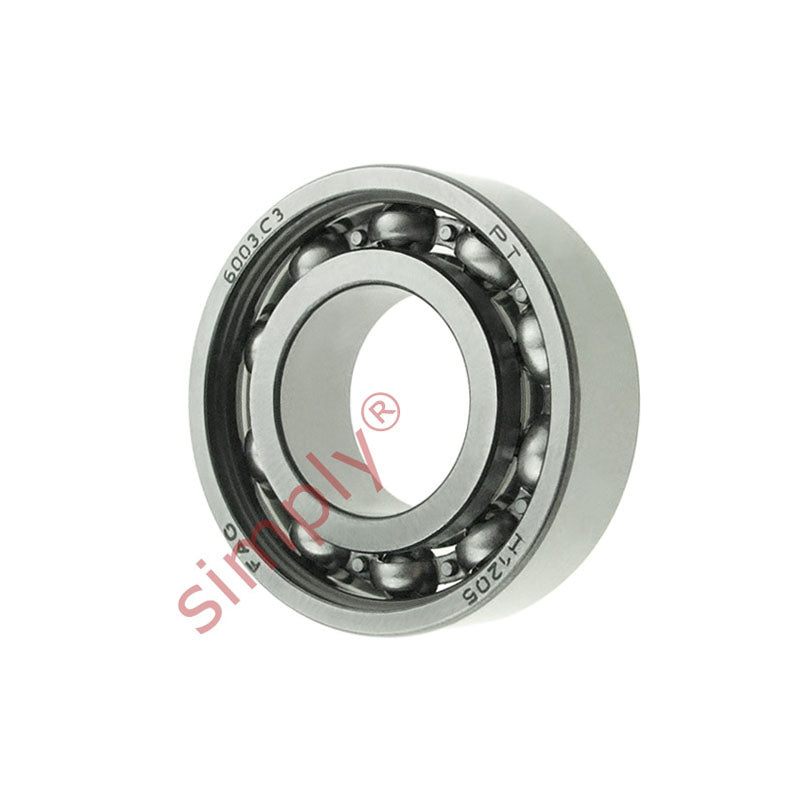

FAG 6003C3 Open Deep Groove Ball Bearing 17x35x10mm
FAG 6003C3 Open Deep Groove Ball Bearing 17x35x10mm
Regular price
€3,96
ex VAT
Regular price
Sale price
€3,96
ex VAT
Equivalent to: 6003 6003C3
In stock
Price Break
10+
€3,01
19+
€2,84
29+
€2,81
39+
€2,77
49+
€2,74
74+
€2,70
99+
€2,54
199+
€2,50
249+
€2,47
499+
€2,43
999+
€2,37
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
FAG Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 10mm |
| Dynamic load C | 6.37 kN |
| Static load Co | 3.25 kN |
| Fatigue load limit Pu | 0.137 kN |
| Reference speed | 45000 rpm |
| Limiting speed | 28000 rpm |
| Mass | 0.039 kg |
| d1 | 23mm |
| D1 | 29.2mm |
| D2 | 31.4mm |
| r1r2 min | 0.3mm |
| da min | 19mm |
| Da max | 33mm |
| ra max | 0.3mm |
| Calc factor Kr | 0.025 |
| Calc factor | 14 |
